Create a reusable PCA object and visualizations — CreatePCAObject • SciDataReportR

Perform principal component analysis (PCA) on specified variables and return reusable PCA results, scores, loading tables, combined data, and plots.

CreatePCATable() has been superseded by CreatePCAObject(). It remains available as a backwards-compatible alias and returns the same reusable PCA object.

Usage

CreatePCAObject(
  data,
  VarsToReduce,
  VariableCategories = NULL,
  Relabel = TRUE,
  minThresh = 0.85,
  scale = TRUE,
  center = TRUE,
  Ordinal = FALSE,
  numComponents = NULL,
  Mode = c("classic", "omics"),
  backend = c("psych", "prcomp", "irlba"),
  rotate = c("varimax", "none"),
  maxComponents = 20,
  maxScreeComponents = 20,
  VarianceFilter = NULL,
  VarianceFilterMethod = c("top_n", "variance_quantile"),
  MissingnessWarningThreshold = 0.2,
  ParticipantMissingnessWarningThreshold = 0.2,
  MissingDataStrategy = c("complete_cases", "impute", "stop"),
  ImputeMethod = c("missRanger", "median"),
  MaxMissingForImputation = 0.2,
  ImputeRowsWithAllMissing = FALSE,
  SuppressWarnings = FALSE,
  imputeMethod = lifecycle::deprecated(),
  Data = lifecycle::deprecated()
)

CreatePCATable(...)

Arguments

data: A data frame containing the variables for PCA.
VarsToReduce: Character vector of raw variable names to include in PCA.
VariableCategories: Optional vector used to color variables in the lollipop loading plot. If supplied, it should be the same length and order as VarsToReduce.
Relabel: Logical. If TRUE, variable labels are used in output tables and plots when available. If FALSE, raw variable names are used. Default is TRUE.
minThresh: Numeric threshold for cumulative variance used to select the number of components when numComponents = NULL. Default is 0.85.
scale: Logical. If TRUE, variables are scaled by their standard deviation before PCA. Default is TRUE.
center: Logical. If TRUE, variables are centered before PCA. Default is TRUE.
Ordinal: Logical. Placeholder retained for backward compatibility. Currently not used inside this function.
numComponents: Optional integer number of components to retain. If NULL, the number is selected using minThresh.
Mode: Character. Either "classic" or "omics". "classic" preserves the original psych::principal() behavior. "omics" uses capped PCA logic for higher-dimensional data.
backend: Character. PCA backend to use. Options are "psych", "prcomp", and "irlba". Default is "psych" for compatibility.
rotate: Character. Rotation method. Options are "varimax" and "none". Default is "varimax".
maxComponents: Integer. Maximum number of final components to retain in "omics" mode when numComponents = NULL. Default is 20.
maxScreeComponents: Integer. Maximum number of components used to estimate and plot the scree curve in "omics" mode. Default is 20.
VarianceFilter: Optional numeric value for variance filtering before PCA in "omics" mode. If VarianceFilterMethod = "top_n", keeps the top VarianceFilter most variable variables. If VarianceFilterMethod = "variance_quantile", keeps variables with variance at or above the specified quantile.
VarianceFilterMethod: Character. Either "top_n" or "variance_quantile". Default is "top_n".
MissingnessWarningThreshold: Numeric threshold for warning about variable-level missingness. Default is 0.20.
ParticipantMissingnessWarningThreshold: Numeric threshold for warning about participant-level missingness. Default is 0.20.
MissingDataStrategy: Character. Missing-data handling strategy. Options are "complete_cases", "impute", and "stop". Default is "complete_cases", which fits PCA only on rows complete across the final PCA variables and returns NA PCA scores for incomplete rows.
ImputeMethod: Character. Missing-data imputation method used only when MissingDataStrategy = "impute". Options are "missRanger" and "median". Default is "missRanger".
MaxMissingForImputation: Numeric value between 0 and 1. When MissingDataStrategy = "impute", rows with missingness greater than this value across the final PCA variables are excluded from PCA scoring and receive NA component scores. Default is 0.20, meaning rows can be imputed if at least 80 percent of PCA variables are observed.
ImputeRowsWithAllMissing: Logical. If FALSE, rows with 100 percent missingness across PCA variables are not imputed even if MaxMissingForImputation = 1. Default is FALSE.
SuppressWarnings: Logical. If TRUE, suppresses PCA-specific warning messages from this function. Default is FALSE.
imputeMethod: Deprecated (since 19.15.0). Use ImputeMethod instead. If supplied, it sets ImputeMethod and uses MissingDataStrategy = "impute" unless MissingDataStrategy was explicitly set.
Data: Deprecated (since 19.15.0). Use data instead.
...: Arguments passed to CreatePCAObject().

Value

A list with the following elements:

p_scree: A ggplot scree and cumulative variance plot.
pcaresults: The PCA result object. In "classic" mode this is a psych::principal() result after psych::fa.sort(). In "omics" mode with "prcomp" or "irlba", this is a harmonized list containing loadings, scores, variance information, backend, mode, and rotation.
LoadingTable: A data frame of component loadings with raw variable names, labels, and duplicate-safe plot labels.
Scores: A data frame of component scores aligned to the original row order of Data. Rows not used for PCA scoring receive NA scores.
CombinedData: The original input data with component scores appended.
Lollipop: A ggplot lollipop loading plot.
ScaleParams: A list containing centering and scaling parameters.
VarsUsed: Character vector of variables actually used in PCA after preprocessing.
VarianceTable: A variance table used for optional omics variance filtering, or NULL.
Preprocessing: A list documenting variables dropped during preprocessing, missingness summaries, rows used for PCA, rows excluded from PCA, and rows imputed.
Mode: The PCA mode used.
Backend: The PCA backend used.
Center: Logical flag indicating whether centering was used.
Scale: Logical flag indicating whether scaling was used.

Details

The default "classic" mode preserves the original psych::principal() workflow for compatibility with existing SciDataReportR analyses. The optional "omics" mode is designed for high-dimensional data such as proteomics, metabolomics, flow cytometry, FACS, transcriptomics, and other settings where the number of variables may be large relative to the number of participants.

Missing data are not imputed by default. With the default MissingDataStrategy = "complete_cases", PCA is fit using only rows that are complete across the final PCA variables, and rows with missing PCA inputs receive NA component scores in Scores and CombinedData. To impute missing values, set MissingDataStrategy = "impute" explicitly and choose an imputation method with ImputeMethod.

The function uses raw variable names internally, but by default uses variable labels in human-facing outputs when labels are available. Variables with zero or undefined standard deviation after preprocessing are dropped automatically with a warning so PCA can continue without manual preprocessing.

Examples

PCA <- CreatePCAObject(
  data = mtcars,
  VarsToReduce = names(mtcars),
  numComponents = 3
)

PCA_imputed <- CreatePCAObject(
  data = mtcars,
  VarsToReduce = names(mtcars),
  numComponents = 3,
  MissingDataStrategy = "impute",
  ImputeMethod = "median",
  MaxMissingForImputation = 0.20
)

PCA_raw_names <- CreatePCAObject(
  data = mtcars,
  VarsToReduce = names(mtcars),
  Relabel = FALSE,
  numComponents = 3
)

PCA_omics <- CreatePCAObject(
  data = mtcars,
  VarsToReduce = names(mtcars),
  Mode = "omics",
  backend = "prcomp",
  maxComponents = 5,
  maxScreeComponents = 5
)

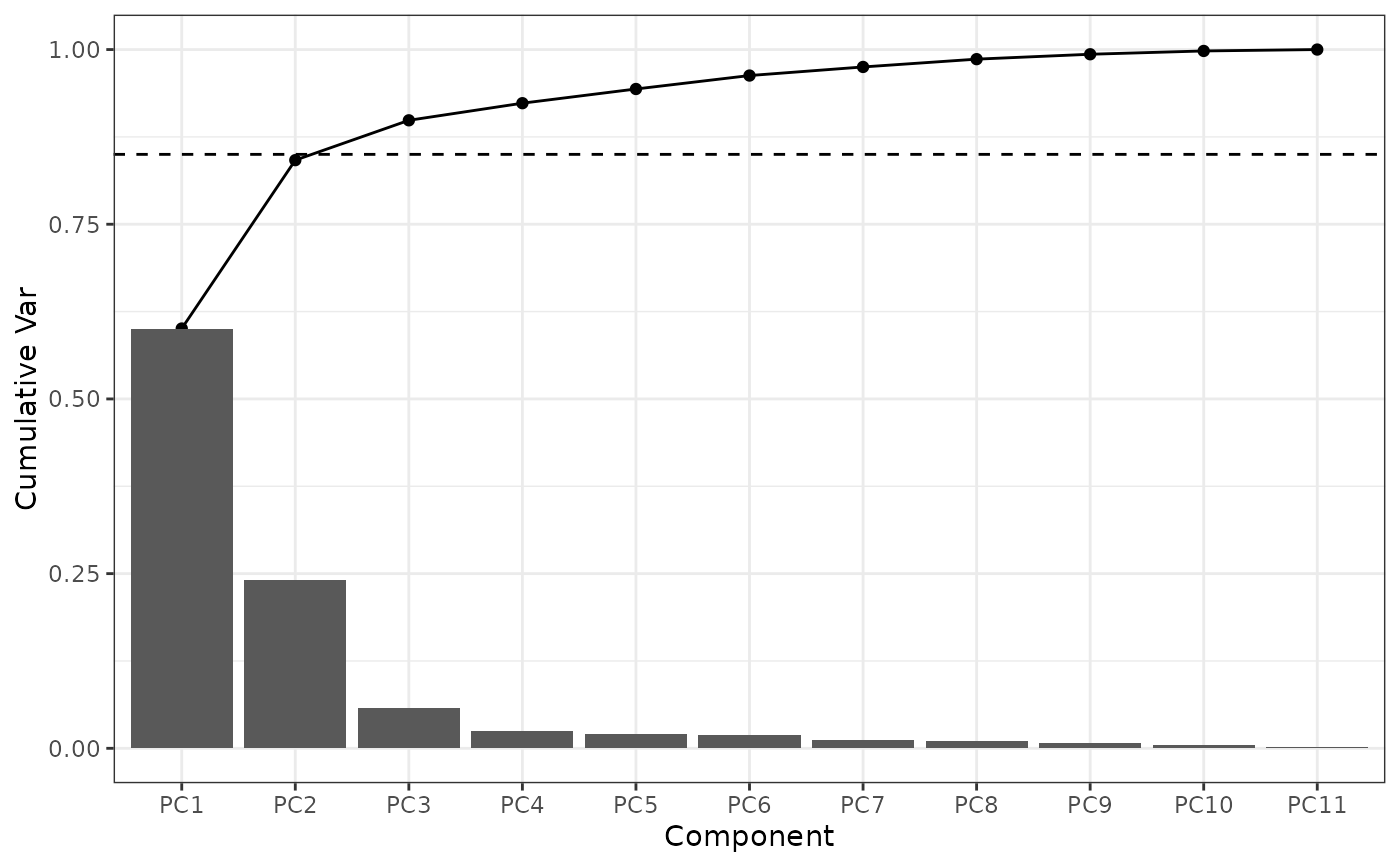

# Display the scree plot from the returned object
PCA$p_scree

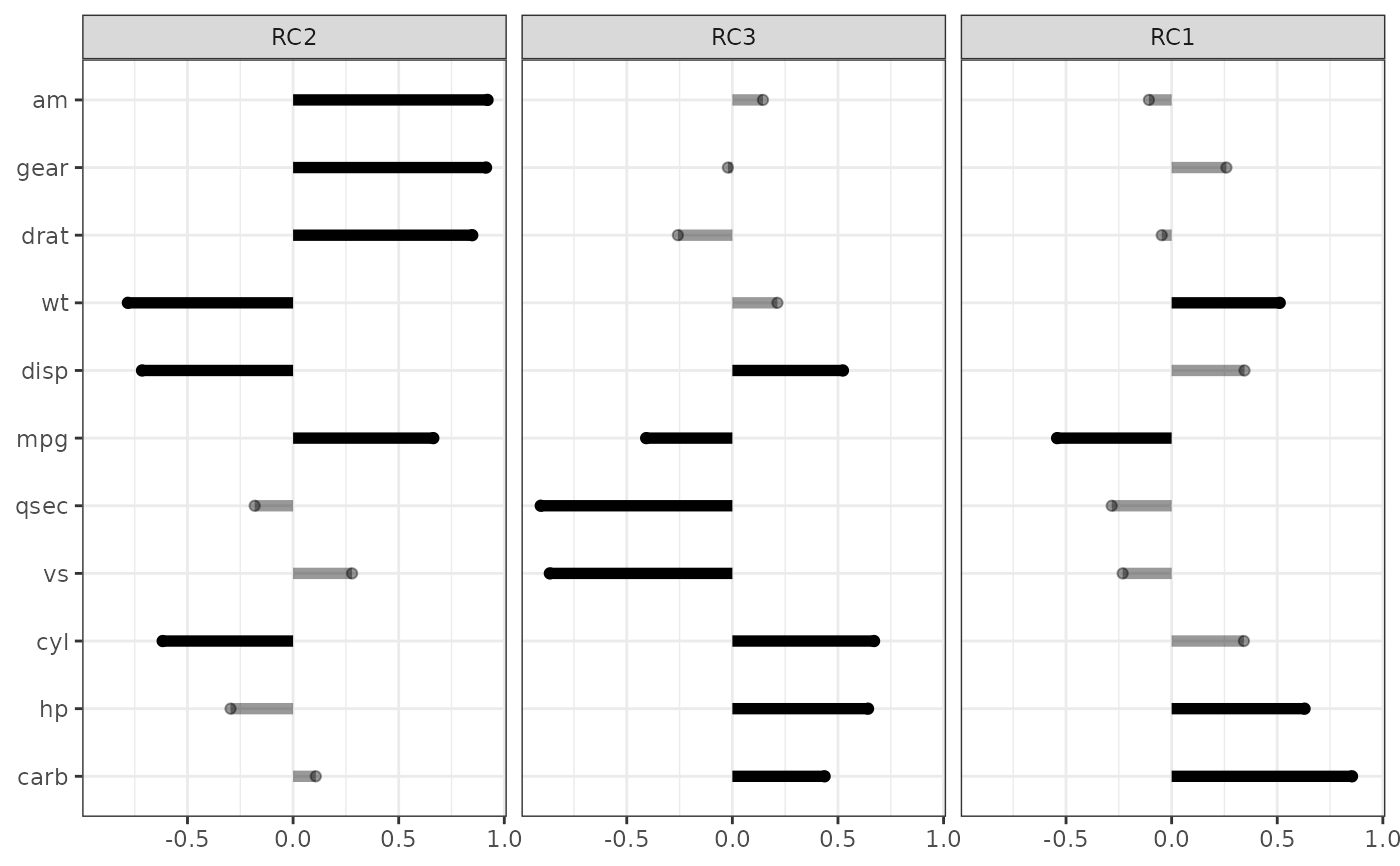

# Lollipop-style loading plot of the component loadings
PCA$Lollipop

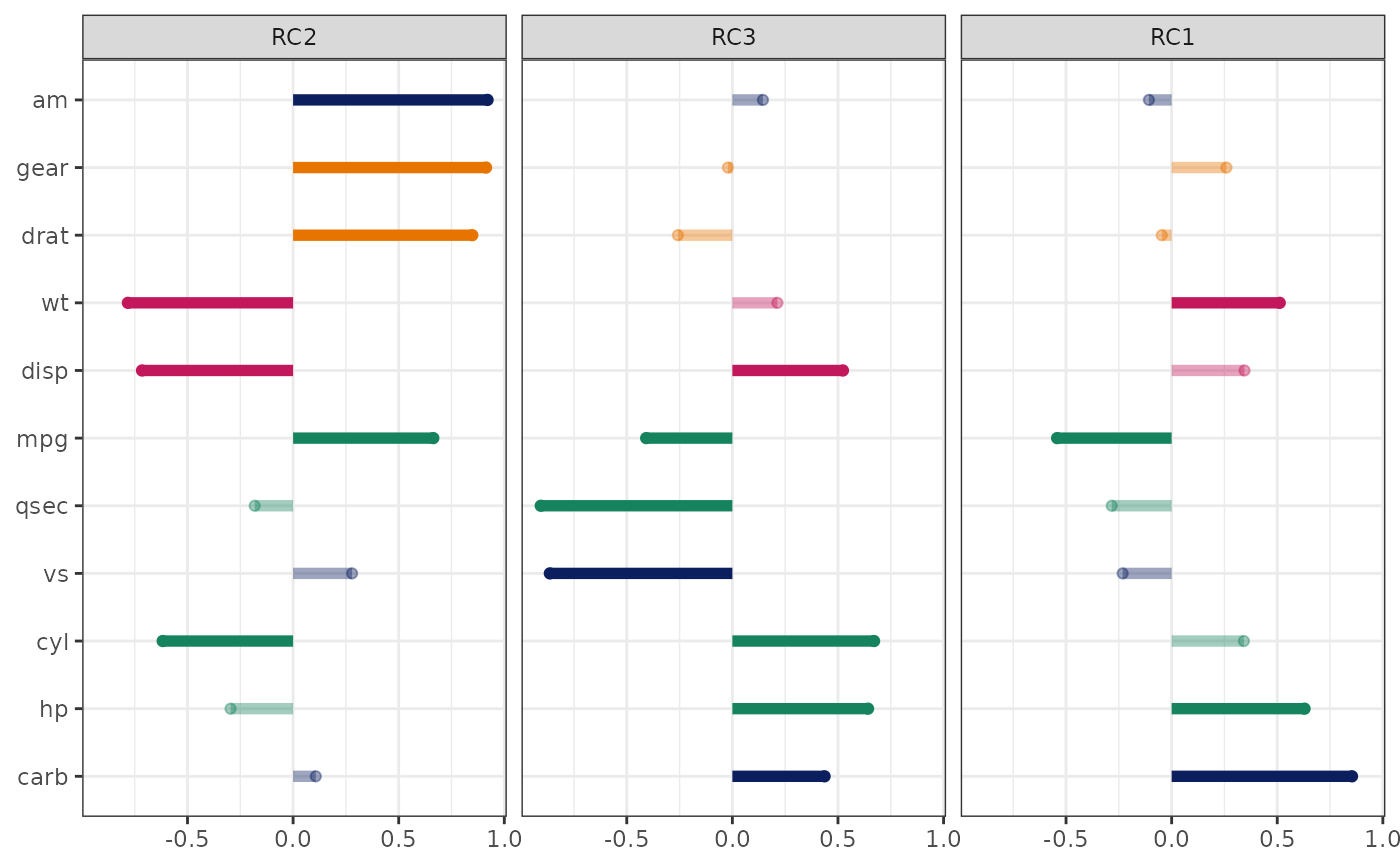

# Color the lollipop loadings by a variable grouping
PCA_grouped <- CreatePCAObject(
  data = mtcars,
  VarsToReduce = names(mtcars),
  VariableCategories = c("Performance", "Performance", "Size", "Performance",
                         "Drivetrain", "Size", "Performance", "Config",
                         "Config", "Drivetrain", "Config"),
  numComponents = 3
)
PCA_grouped$Lollipop
