Plot ANOVA Relationships Matrix

This function plots the relationship between continuous and categorical variables using ANOVA or Kruskal-Wallis tests. It generates a "heatmap" with points colored and shaped based on statistical significance and effect size. When generalized eta-squared is unavailable, raw p-values are colored with scale_color_pvalue(); the FDR-corrected plot uses adjusted p-values.

Usage

PlotAnovaRelationshipsMatrix(
  data,
  CatVars,
  ContVars,
  covariates = NULL,
  Relabel = TRUE,
  Parametric = TRUE,
  Ordinal = FALSE,
  min_n = 4,
  eps = 1e-08,
  Data = lifecycle::deprecated(),
  fdr_scope = c("matrix", "per_outcome", "per_predictor"),
  Covariates = lifecycle::deprecated()
)

Arguments

data

The data frame containing the variables of interest.

CatVars

Character vector of categorical variable names.

ContVars

Character vector of continuous variable names.

covariates

Optional character vector of covariate names for ANCOVA analysis.

Relabel

Logical indicating whether to relabel variables with their labels (default is TRUE).

Parametric

Logical indicating whether to use parametric (ANOVA) or non-parametric (Kruskal-Wallis) tests (default is TRUE).

Ordinal

Logical, indicating whether ordinal variables should be considered.

min_n

Minimum number of complete observations required for a tested relationship.

eps

Small positive value used to avoid zero-size plotting artifacts.

Data

Deprecated (since 19.15.0). Use data instead.

fdr_scope

Either "matrix" (default) or "per_outcome", passed to ApplyFDRCorrection(). "matrix" corrects across all p-values at once (historical behavior). "per_outcome" corrects separately within each outcome: outcomes are the continuous variables (ContVars).

Covariates

Deprecated (since 19.15.0). Use covariates instead.

Value

A list containing three ggplot objects: p (scatter plot without multiple comparison correction), p_FDR (scatter plot with FDR correction), and pvaltable (data frame of p-values and significance).

Parametric and non-parametric tests

ANOVA assumes roughly normal residuals and similar variance across groups. Biomarker concentrations are often right-skewed, and group sizes are often uneven, both of which make the F-test unreliable.

Parametric = FALSE switches to Kruskal-Wallis, which compares ranks rather than means and assumes neither normality nor equal variance. The matrix is built and read exactly the same way.

Comparing the two p-value tables shows which conclusions depended on the choice of test. Relationships that hold under both are the ones to trust. Where they disagree, the direction is informative: significant only under ANOVA suggests the result is being carried by skew or a few extreme values, while significant only under Kruskal-Wallis suggests a real shift in the bulk of the distribution that outliers were masking from the mean-based test.

Kruskal-Wallis is a rank test and has no ANCOVA form, so covariates requires Parametric = TRUE.

Examples

data(SampleData)
data(SampleVariableTypes)

# Attach labels and factor levels for readable axes
Labelled <- RevalueData(SampleData, SampleVariableTypes)$RevaluedData

result <- PlotAnovaRelationshipsMatrix(
  Labelled,
  CatVars = c("Diagnosis", "sex", "Genotype"),
  ContVars = c("age", "ACE_CD143_Angiotensin_Converti",
               "ACTH_Adrenocorticotropic_Hormon", "AXL", "Adiponectin",
               "Alpha_1_Antichymotrypsin", "Alpha_1_Antitrypsin",
               "Alpha_1_Microglobulin", "Alpha_2_Macroglobulin",
               "Apolipoprotein_A1")
)

# Raw p-value associations

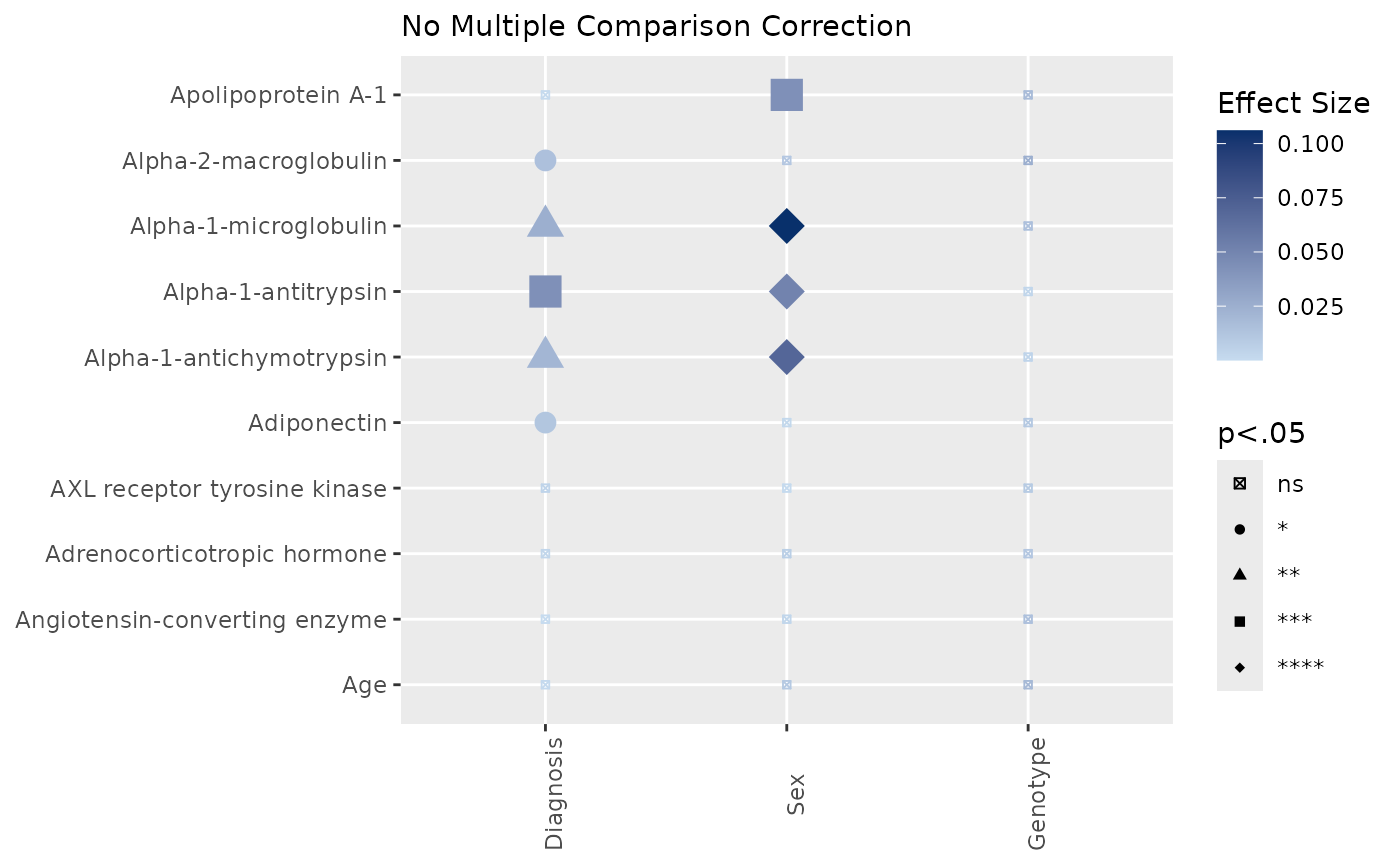

result$Unadjusted$plot


# FDR-adjusted associations

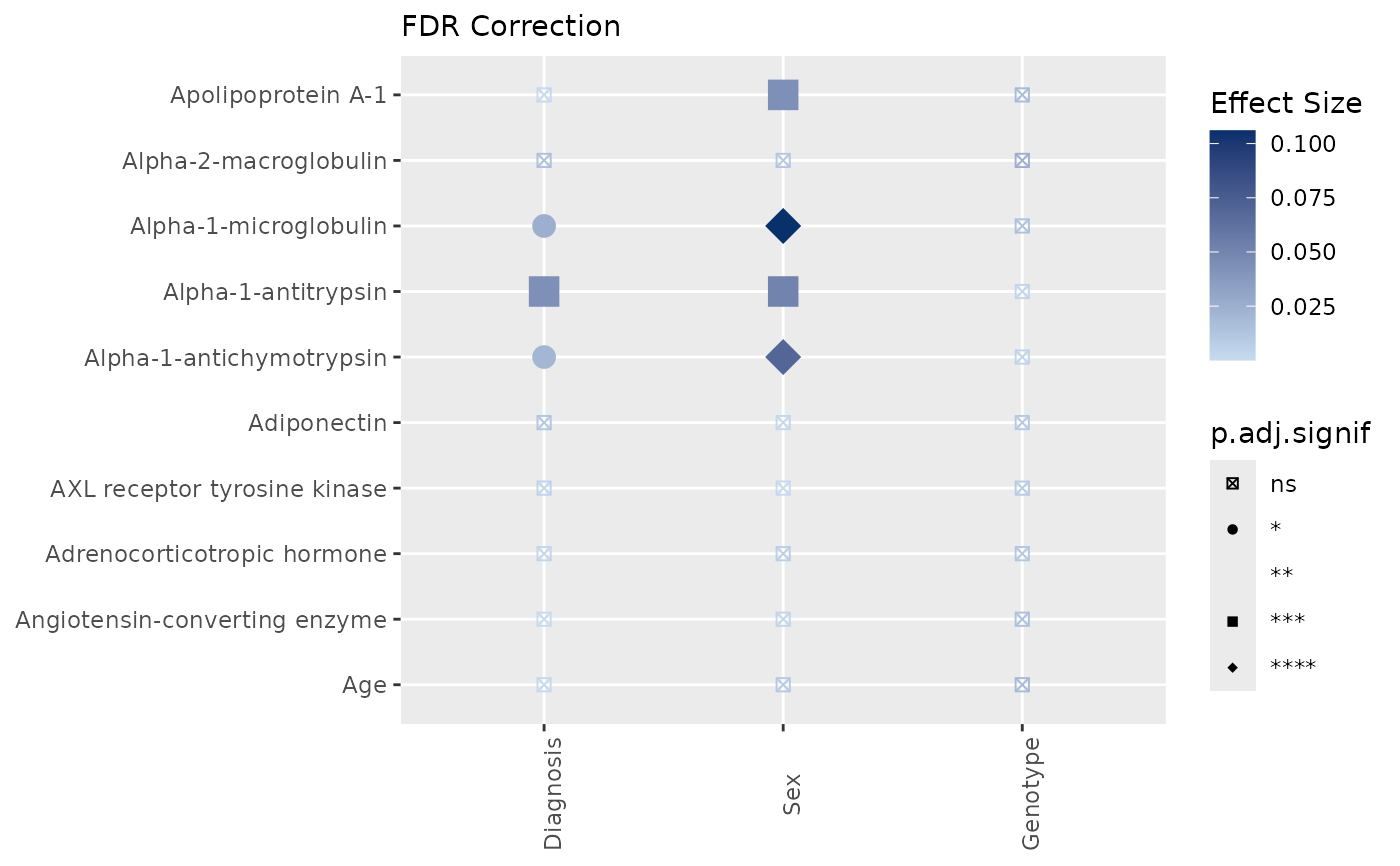

result$FDRCorrected$plot
#> Warning: Using size for a discrete variable is not advised.


# The same matrix using Kruskal-Wallis instead of ANOVA
result_NonParametric <- PlotAnovaRelationshipsMatrix(
  Labelled,
  CatVars = c("Diagnosis", "sex", "Genotype"),
  ContVars = c("age", "ACE_CD143_Angiotensin_Converti",
               "ACTH_Adrenocorticotropic_Hormon", "AXL", "Adiponectin",
               "Alpha_1_Antichymotrypsin", "Alpha_1_Antitrypsin",
               "Alpha_1_Microglobulin", "Alpha_2_Macroglobulin",
               "Apolipoprotein_A1"),
  Parametric = FALSE
)

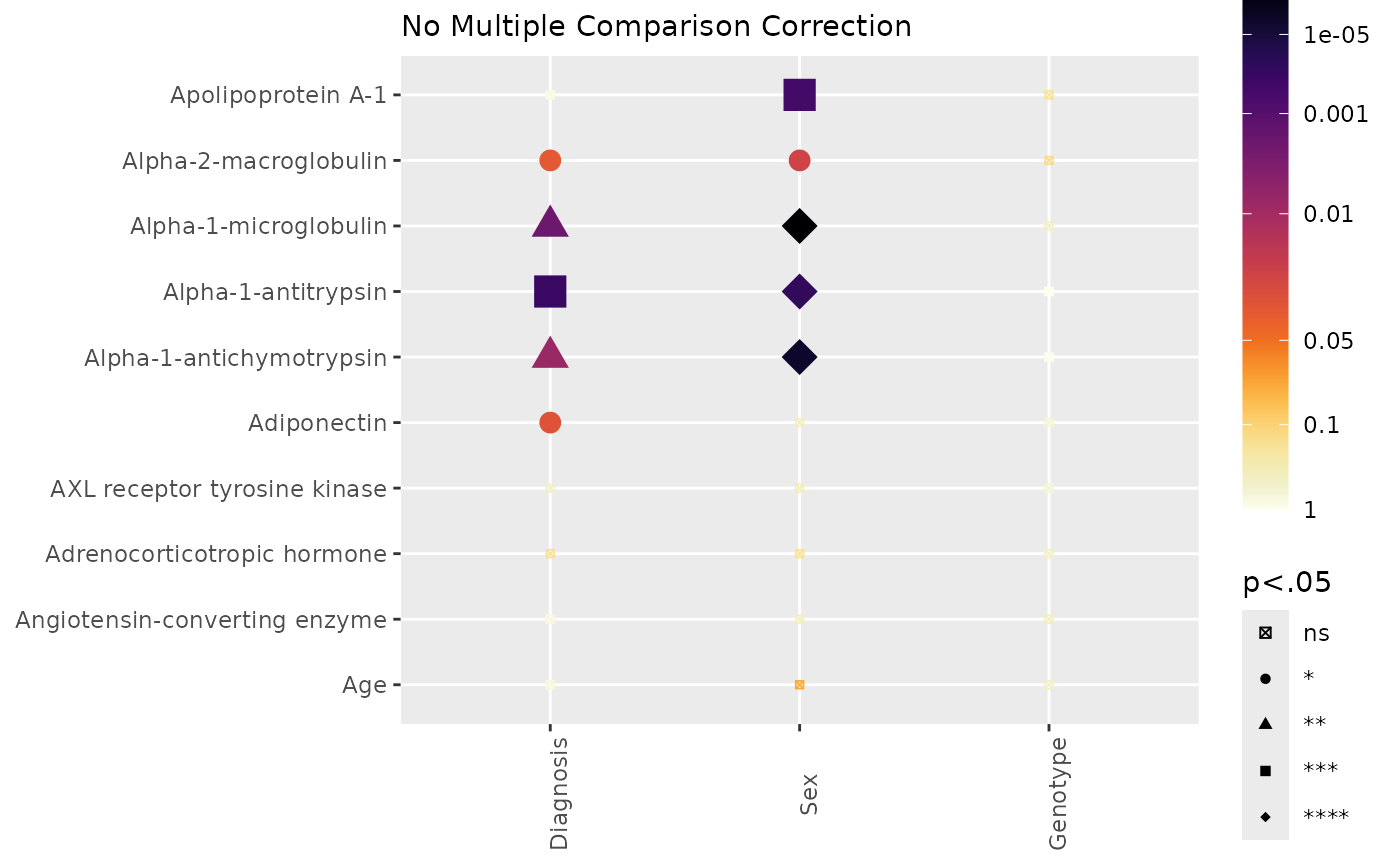

result_NonParametric$Unadjusted$plot

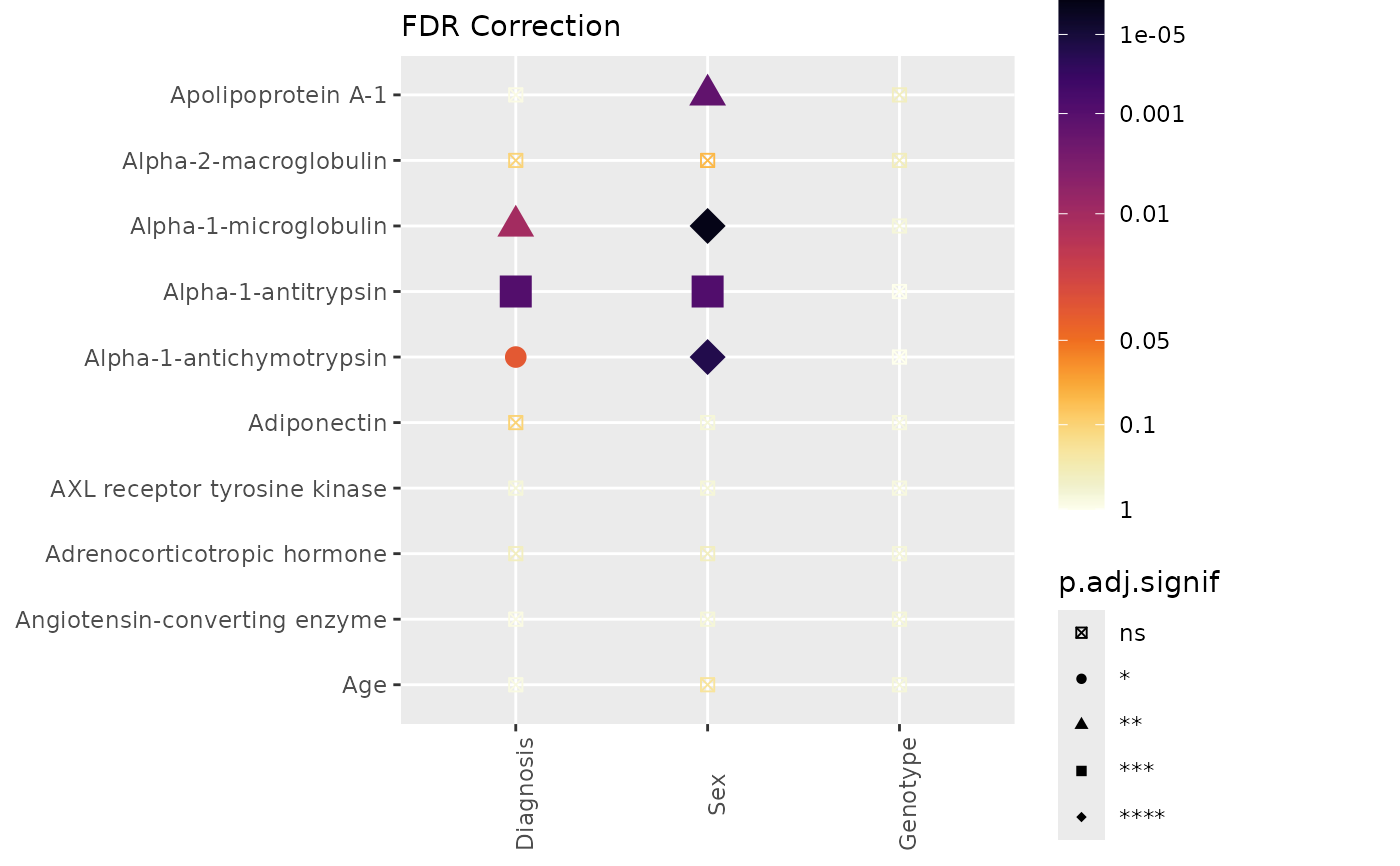

result_NonParametric$FDRCorrected$plot
#> Warning: Using size for a discrete variable is not advised.


# Where the two tests disagree
cols_Key <- c("CategoricalVariable", "ContinuousVariable", "p")
df_Compare <- merge(
  result$Unadjusted$PvalTable[, cols_Key],
  result_NonParametric$Unadjusted$PvalTable[, cols_Key],
  by = c("CategoricalVariable", "ContinuousVariable"),
  suffixes = c("_ANOVA", "_KruskalWallis")
)
df_Compare$AgreesAt05 <-
  (df_Compare$p_ANOVA < 0.05) == (df_Compare$p_KruskalWallis < 0.05)

htmltools::browsable(htmltools::HTML(as.character(
  FreezeTableHeader(
    dplyr::mutate(
      df_Compare,
      dplyr::across(dplyr::where(is.numeric), \(x) signif(x, 3))
    ),
    height = "320px", full_width = TRUE
  )
)))
 CategoricalVariable

 ContinuousVariable

 p_ANOVA

 p_KruskalWallis

 AgreesAt05

 Diagnosis

 ACE_CD143_Angiotensin_Converti

 8.87e-01

 7.45e-01

 TRUE

 Diagnosis

 ACTH_Adrenocorticotropic_Hormon

 3.04e-01

 1.85e-01

 TRUE

 Diagnosis

 AXL

 2.62e-01

 4.80e-01

 TRUE

 Diagnosis

 Adiponectin

 4.70e-02

 3.03e-02

 TRUE

 Diagnosis

 Alpha_1_Antichymotrypsin

 8.00e-03

 7.97e-03

 TRUE

 Diagnosis

 Alpha_1_Antitrypsin

 1.50e-04

 1.13e-04

 TRUE

 Diagnosis

 Alpha_1_Microglobulin

 4.00e-03

 1.95e-03

 TRUE

 Diagnosis

 Alpha_2_Macroglobulin

 2.70e-02

 3.43e-02

 TRUE

 Diagnosis

 Apolipoprotein_A1

 6.87e-01

 7.96e-01

 TRUE

 Diagnosis

 age

 5.54e-01

 7.06e-01

 TRUE

 Genotype

 ACE_CD143_Angiotensin_Converti

 4.19e-01

 4.14e-01

 TRUE

 Genotype

 ACTH_Adrenocorticotropic_Hormon

 6.09e-01

 5.13e-01

 TRUE

 Genotype

 AXL

 7.27e-01

 6.40e-01

 TRUE

 Genotype

 Adiponectin

 6.46e-01

 6.29e-01

 TRUE

 Genotype

 Alpha_1_Antichymotrypsin

 9.47e-01

 9.57e-01

 TRUE

 Genotype

 Alpha_1_Antitrypsin

 9.72e-01

 9.80e-01

 TRUE

 Genotype

 Alpha_1_Microglobulin

 4.03e-01

 4.39e-01

 TRUE

 Genotype

 Alpha_2_Macroglobulin

 1.40e-01

 1.48e-01

 TRUE

 Genotype

 Apolipoprotein_A1

 3.05e-01

 1.98e-01

 TRUE

 Genotype

 age

 3.05e-01

 5.18e-01

 TRUE

 sex

 ACE_CD143_Angiotensin_Converti

 2.90e-01

 3.97e-01

 TRUE

 sex

 ACTH_Adrenocorticotropic_Hormon

 1.34e-01

 1.82e-01

 TRUE

 sex

 AXL

 6.52e-01

 3.67e-01

 TRUE

 sex

 Adiponectin

 4.36e-01

 4.15e-01

 TRUE

 sex

 Alpha_1_Antichymotrypsin

 1.20e-06

 1.60e-06

 TRUE

 sex

 Alpha_1_Antitrypsin

 3.45e-05

 6.39e-05

 TRUE

 sex

 Alpha_1_Microglobulin

 0.00e+00

 0.00e+00

 TRUE

 sex

 Alpha_2_Macroglobulin

 6.10e-02

 2.11e-02

 FALSE

 sex

 Apolipoprotein_A1

 1.44e-04

 2.31e-04

 TRUE

 sex

 age

 7.40e-02

 7.30e-02

 TRUE

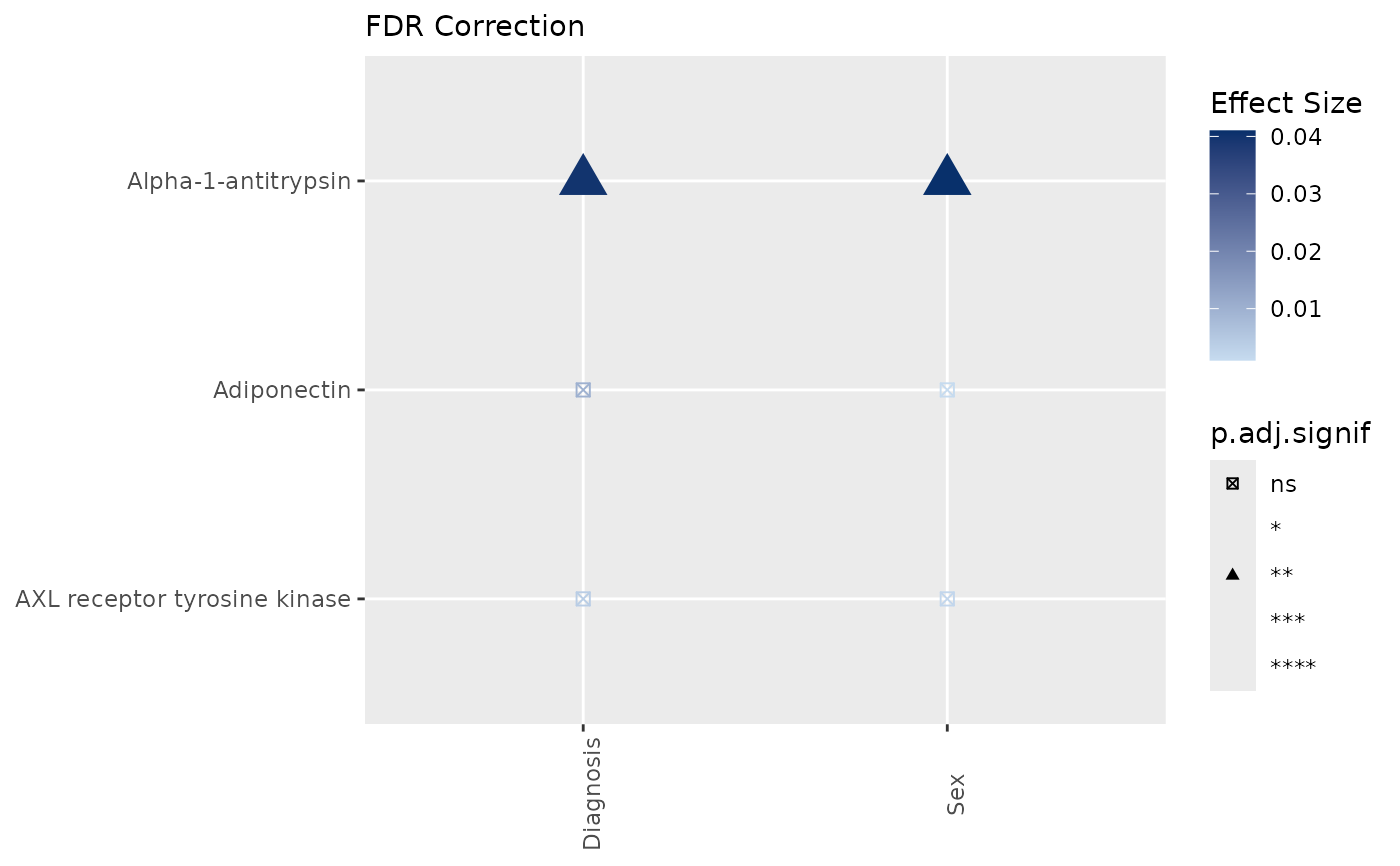

# Covariate adjustment (parametric only)
PlotAnovaRelationshipsMatrix(
  Labelled,
  CatVars = c("Diagnosis", "sex"),
  ContVars = c("AXL", "Adiponectin", "Alpha_1_Antitrypsin"),
  covariates = "age"
)$FDRCorrected$plot
#> Warning: Using size for a discrete variable is not advised.
