Plot Continuous Distributions

Creates rain-cloud plots (half-violin + box/median + scatter) for one or more continuous variables, with optional group-wise colouring.

Usage

PlotContinuousDistributions(
  data,
  variables = NULL,
  Fill = NULL,
  Relabel = TRUE,
  FacetLabelStyle = c("both", "label_only", "variable_only", "auto"),
  ncol = 3,
  Ordinal = lifecycle::deprecated(),
  TreatOrdinalAs = "Categorical",
  DataFrame = lifecycle::deprecated(),
  Variables = lifecycle::deprecated()
)

Arguments

data

A data frame containing the variables to be plotted.

variables

Character vector of column names to plot.

Fill

Optional column name for grouping.

Relabel

Logical; use variable labels when available.

FacetLabelStyle

One of "both", "label_only", "variable_only", "auto".

ncol

Number of columns in the facet grid.

Ordinal

Deprecated logical compatibility option; use TreatOrdinalAs instead.

TreatOrdinalAs

How ordinal variables are handled. "Continuous" includes their numeric score; "Exclude" omits them. "Both" is not meaningful for this plot and errors.

DataFrame

Deprecated (since 19.15.0). Use data instead.

Variables

Deprecated (since 19.15.0). Use variables instead.

Value

A ggplot object.

Details

Categorical input safeguards apply to Fill. Numeric columns are converted locally to factors, with a warning, only when all observed values are finite whole-number codes and there are at most 10 distinct non-missing values. Other numeric inputs error: explicitly convert the column to a factor first if categorical treatment is intended (for example, df_All$cohort <- factor(df_All$cohort)). Few unique values alone do not establish categorical meaning. Factors, character columns, and logical columns are accepted; more than 10 observed categories warn and continue. Entirely missing or unsupported columns error. Caller data are unchanged, and existing restrictions on the required number of groups still apply.

Examples

data(SampleData)
data(SampleVariableTypes)

Labelled <- RevalueData(SampleData, SampleVariableTypes)$RevaluedData

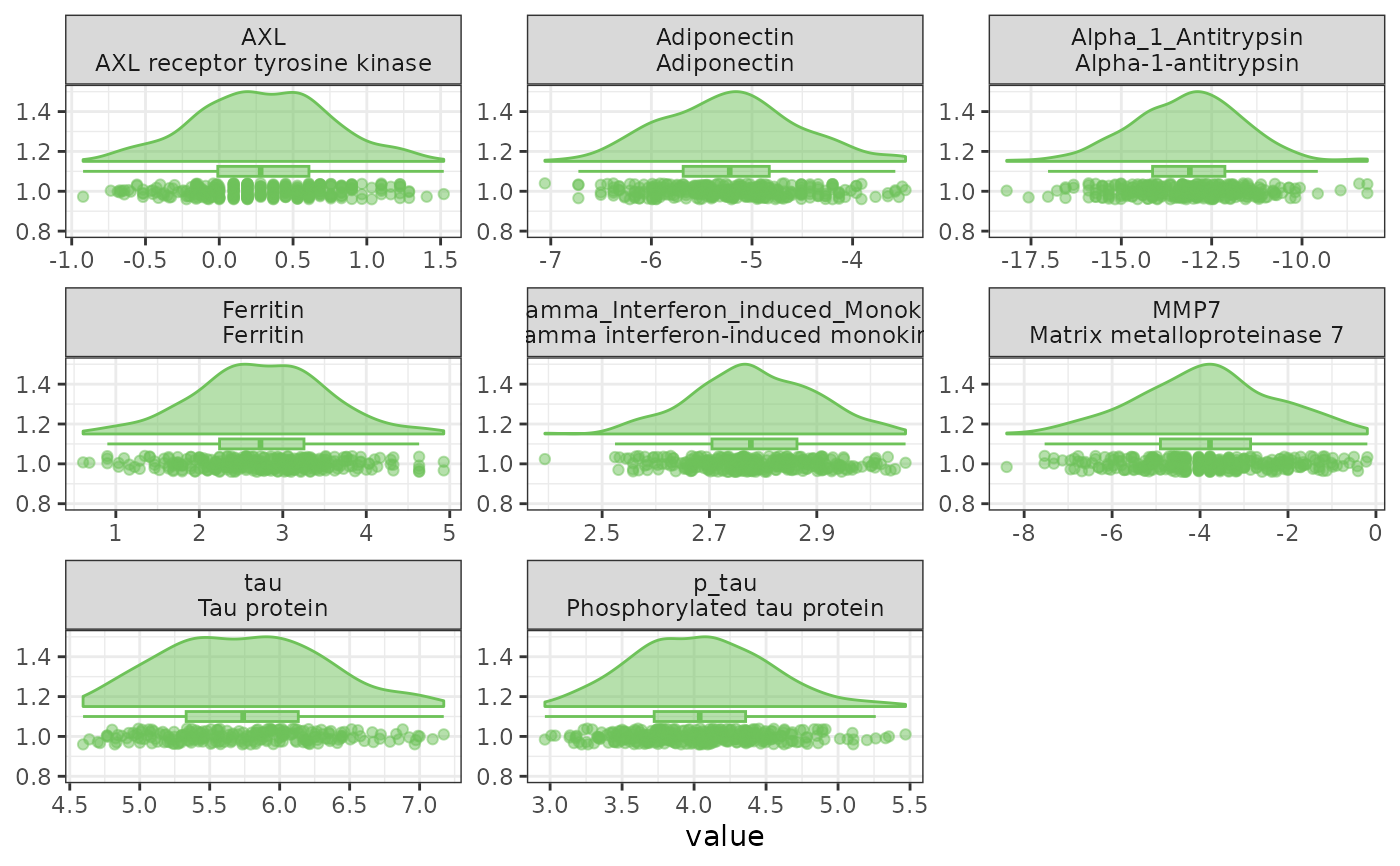

# Eight variables across three columns show wrapped labels and multi-row facets.
PlotContinuousDistributions(
  data = Labelled,
  variables = c("AXL", "Adiponectin", "Alpha_1_Antitrypsin", "Ferritin",
                "Gamma_Interferon_induced_Monokin", "MMP7", "tau", "p_tau"),
  ncol = 3
)
#> Warning: Removed 100 rows containing non-finite outside the scale range
#> (`stat_half_ydensity()`).
#> Warning: Removed 100 rows containing non-finite outside the scale range
#> (`stat_boxplot()`).
#> Warning: Removed 100 rows containing missing values or values outside the scale range
#> (`geom_point_sorted()`).

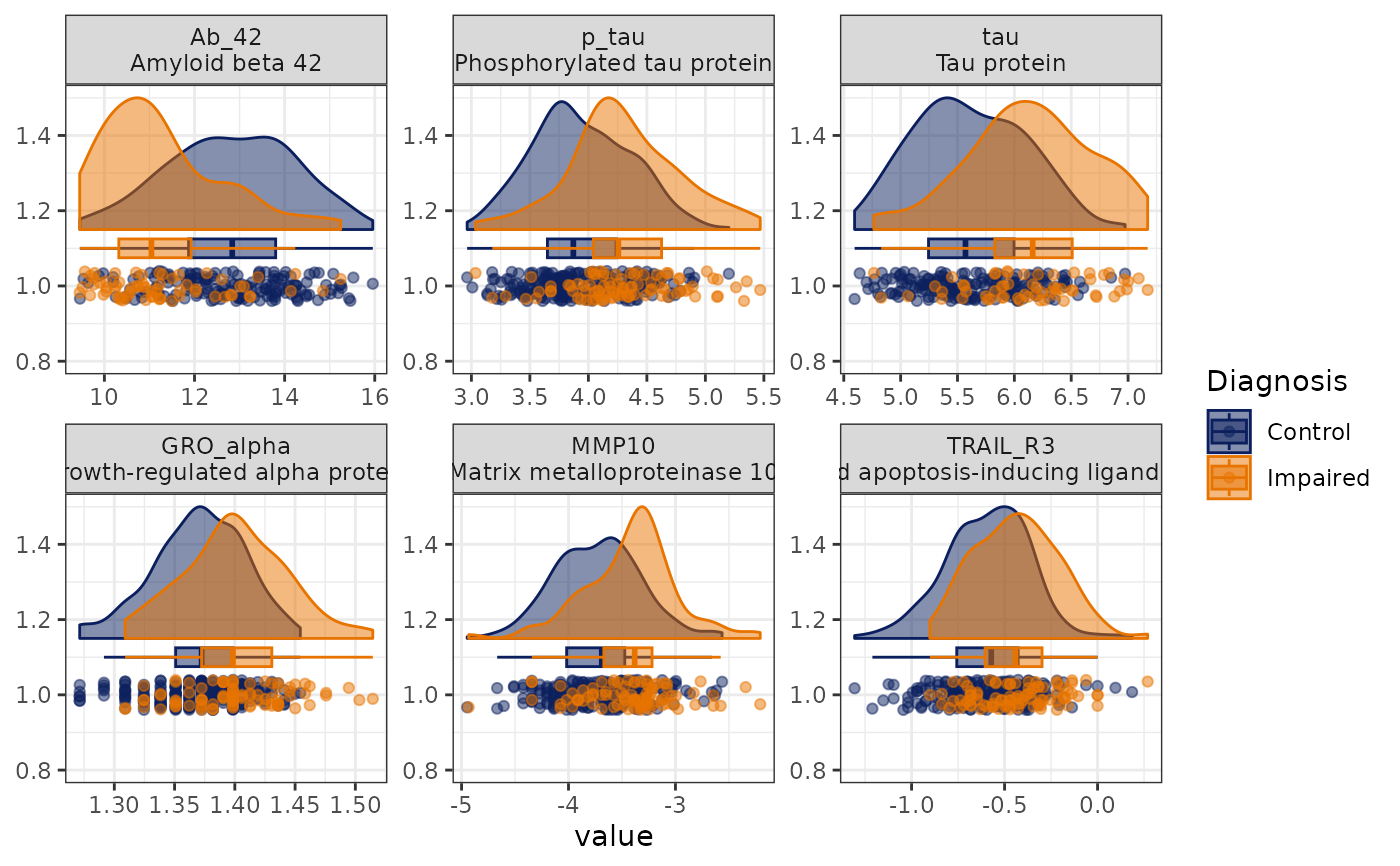

# Grouped rain-clouds use the Diagnosis fill to compare distributions.
PlotContinuousDistributions(
  data = Labelled,
  variables = c("Ab_42", "p_tau", "tau", "GRO_alpha", "MMP10", "TRAIL_R3"),
  Fill = "Diagnosis",
  ncol = 3
)
#> Warning: Removed 200 rows containing non-finite outside the scale range
#> (`stat_half_ydensity()`).
#> Warning: Removed 200 rows containing non-finite outside the scale range
#> (`stat_boxplot()`).
#> Warning: Removed 200 rows containing missing values or values outside the scale range
#> (`geom_point_sorted()`).
