This function adds a caption to a ggplot explaining the meaning of star
annotations (*, **, ***). It is most commonly added to correlation heatmaps
produced by PlotCorrelationsHeatmap() or to downstream plots derived from
that function with add_r_and_stars().
Value
A labs() object that can be added to a ggplot, especially
SciDataReportR heatmaps that use star annotations.
Input requirements
geom_starcaption() does not take an input object directly. Add it to a
ggplot with +, typically a plot returned inside the list created by
PlotCorrelationsHeatmap() or a plot returned by add_r_and_stars().
Examples
data(SampleData)
data(SampleVariableTypes)
df_Labelled <- RevalueData(SampleData, SampleVariableTypes)$RevaluedData

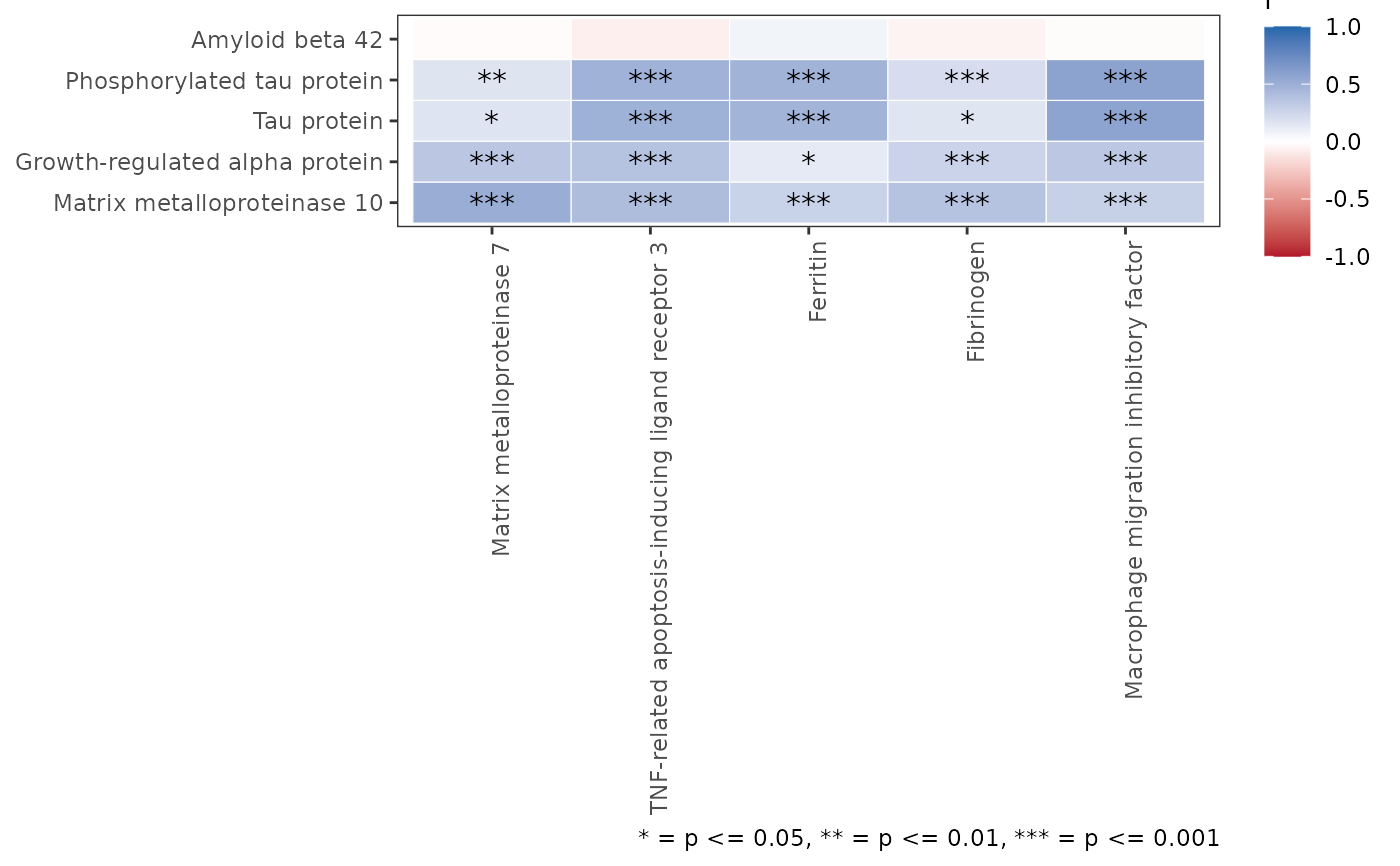

# Add the caption to a correlation heatmap whose tiles already show stars.
heatmap <- PlotCorrelationsHeatmap(
data = df_Labelled,
predictor_vars = c("Ab_42", "p_tau", "tau", "GRO_alpha", "MMP10"),
outcome_vars = c("MMP7", "TRAIL_R3", "Ferritin", "Fibrinogen", "MIF")
)
heatmap$Unadjusted$plot + geom_starcaption()
