Exploring associations with PlotCorrelationsHeatmap()

1 Overview

PlotCorrelationsHeatmap() computes correlations or partial correlations and visualizes the results as a heatmap.

This vignette demonstrates:

• Correlations among biomarkers
• Correlations between biomarkers and clinical variables
• Pearson versus Spearman correlations
• False discovery rate (FDR) correction
• Covariate-adjusted correlations
• Annotating heatmaps with correlation coefficients and significance stars
• Interactive exploration using plotly
• Follow-up visualization of significant correlations

2 Load packages

library(SciDataReportR)
library(dplyr)
library(plotly)

3 Load example data

SciDataReportR includes an example dataset and variable type specification file.

data("SampleData")
data("SampleVariableTypes")

RevaluedObj <- RevalueData(
  SampleData,
  SampleVariableTypes
)

df_Revalued <- RevaluedObj$RevaluedData

4 Select biomarkers

For this vignette we will examine relationships among a panel of biomarkers.

biomarkers <- c(
  "AXL",
  "Calbindin",
  "Ferritin",
  "MMP7",
  "MMP10",
  "IL_6",
  "VCAM_1",
  "ICAM_1",
  "C_Reactive_Protein",
  "TNF_RII",
  "MCP_1",
  "tau",
  "p_tau",
  "Cystatin_C",
  "Adiponectin"
)

5 Correlations among biomarkers

When only xVars are supplied, a square correlation matrix is generated.

CorrObj <- PlotCorrelationsHeatmap(
  Data = df_Revalued,
  xVars = biomarkers
)

CorrObj$Unadjusted$plot

Each tile represents the correlation coefficient between two biomarkers. Positive and negative correlations are represented by opposite ends of the color scale.

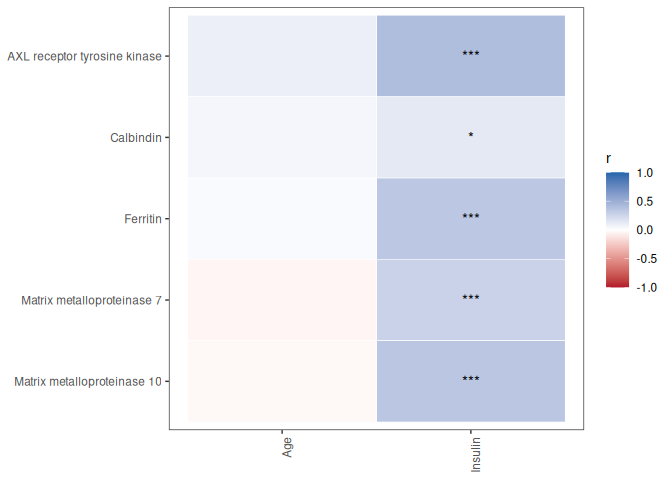

6 Correlations between biomarkers and clinical variables

A rectangular correlation matrix can be created by supplying both xVars and yVars.

clinical_vars <- c(
  "age",
  "Insulin"
)

CorrObj_Clinical <- PlotCorrelationsHeatmap(
  Data = df_Revalued,
  xVars = biomarkers,
  yVars = clinical_vars
)

CorrObj_Clinical$Unadjusted$plot

This approach is useful for screening biomarker-clinical relationships.

7 Pearson versus Spearman correlations

The choice of correlation method depends on the characteristics of the data.

Method	Recommended Use
Pearson	Approximately normal variables with linear relationships
Spearman	Skewed variables, outliers, or monotonic relationships
Kendall	Small samples or ordinal variables

7.1 Pearson correlations

Pearson correlation measures linear relationships between variables and is most appropriate when variables are approximately normally distributed.

PearsonObj <- PlotCorrelationsHeatmap(
  Data = df_Revalued,
  xVars = biomarkers,
  method = "pearson"
)

PearsonObj$Unadjusted$plot

7.2 Spearman correlations

Spearman correlation is rank-based and is often preferred for biomarker data because it is more robust to skewed distributions and outliers.

SpearmanObj <- PlotCorrelationsHeatmap(
  Data = df_Revalued,
  xVars = biomarkers,
  method = "spearman"
)

SpearmanObj$Unadjusted$plot

Researchers frequently compare both methods to determine whether findings are sensitive to distributional assumptions.

8 Unadjusted versus FDR-corrected significance

PlotCorrelationsHeatmap() automatically computes both unadjusted and FDR-corrected p-values.

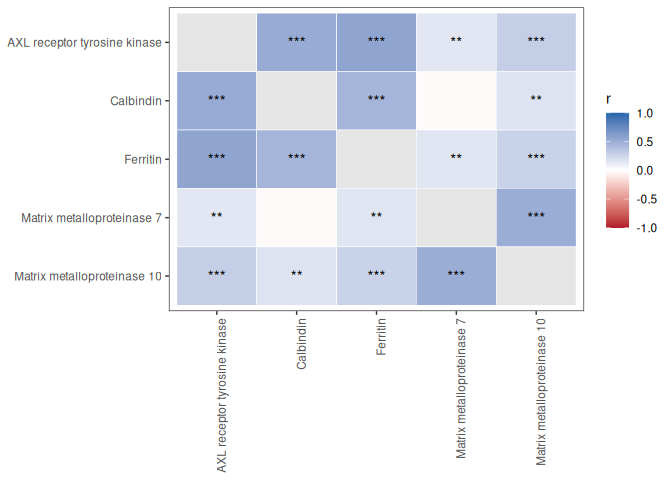

8.1 Unadjusted significance

CorrObj$Unadjusted$plot

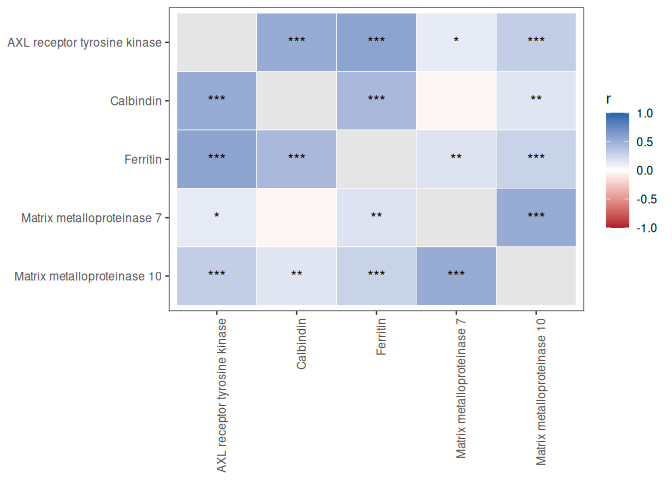

8.2 FDR-corrected significance

CorrObj$FDRCorrected$plot

When evaluating many correlations simultaneously, false discovery rate correction is recommended to reduce the likelihood of false positive findings.

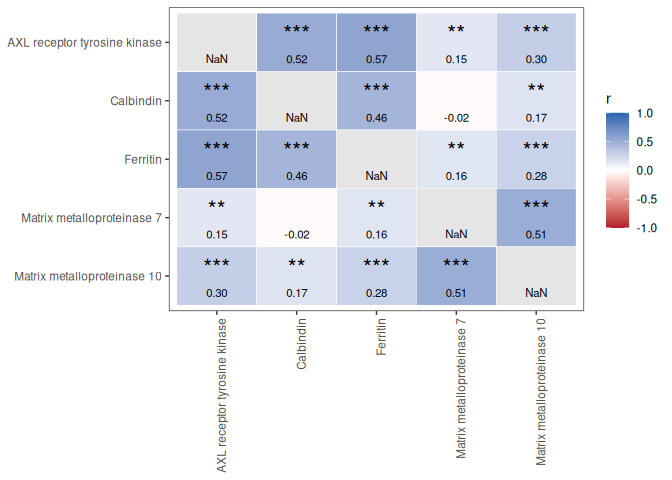

9 Adding correlation coefficients and significance stars

The default heatmaps display significance stars. Additional annotations can be added using add_r_and_stars().

9.1 Raw p-values

add_r_and_stars(
  CorrObj,
  star_from = "raw"
)

9.2 FDR-corrected p-values

add_r_and_stars(
  CorrObj,
  star_from = "fdr"
)

These annotated heatmaps are useful for presentations and publications.

10 Adjusting for covariates

Partial correlations can be estimated by specifying one or more covariates.

The example below adjusts all correlations for age.

CorrObj_AgeAdjusted <- PlotCorrelationsHeatmap(
  Data = df_Revalued,
  xVars = biomarkers,
  covars = "age"
)

CorrObj_AgeAdjusted$FDRCorrected$plot

When covariates are supplied, variables are residualized prior to correlation testing. This can help account for potential confounding factors.

11 Interactive heatmaps

Heatmaps can be converted into interactive visualizations using plotly.

# Not evaluated in the shipped vignette to keep it lightweight - run interactively
ggplotly(
  CorrObj$FDRCorrected$plot
)

Interactive plots allow users to:

• Hover over cells to inspect values
• Zoom into regions of interest
• Explore large correlation matrices

12 Investigating significant correlations

Significant correlations can be examined individually using plotSigCorrelations().

SigPlots <- plotSigCorrelations(
  DataFrame = df_Revalued,
  CorrelationHeatmapObject = CorrObj
)

The resulting object contains a list of scatterplots for significant associations, one per significant heatmap cell.

length(SigPlots)

These plots can be combined into a single figure.

AssemblePlots(
  SigPlots,
  LegendPosition = "none",
  ncol = 3
)

These plotSigCorrelations() / AssemblePlots() chunks are shown but not executed when the vignette is built, because the underlying ggstatsplot scatterplots require graphics fonts that are not available on all systems. Run them interactively to reproduce the figures.

This workflow provides a convenient way to visually inspect the relationships underlying significant heatmap cells.

13 Accessing correlation results

The returned object stores both correlation estimates and p-values.

13.1 Unadjusted results

head(
  CorrObj$Unadjusted$r
)

                 AXL   Calbindin   Ferritin        MMP7     MMP10       IL_6
AXL              NaN  0.52216065  0.5653655  0.14869241 0.3022935 -0.1532338
Calbindin  0.5221607         NaN  0.4583562 -0.02312424 0.1680769 -0.1237334
Ferritin   0.5653655  0.45835621        NaN  0.15786447 0.2789080 -0.0224228
MMP7       0.1486924 -0.02312424  0.1578645         NaN 0.5129789  0.1919149
MMP10      0.3022935  0.16807693  0.2789080  0.51297885       NaN  0.1084045
IL_6      -0.1532338 -0.12373337 -0.0224228  0.19191492 0.1084045        NaN
              VCAM_1     ICAM_1 C_Reactive_Protein    TNF_RII      MCP_1
AXL       0.53873489 0.41150120        0.038649351 0.67741432 0.02749897
Calbindin 0.39780711 0.22565283       -0.004856696 0.49383870 0.06739808
Ferritin  0.46241675 0.38306222       -0.054878991 0.60713734 0.15505013
MMP7      0.36830975 0.38100789        0.206084412 0.36057242 0.18586979
MMP10     0.43421585 0.43590038        0.094901361 0.49835015 0.19030718
IL_6      0.02738943 0.06827897        0.246655833 0.01800354 0.16583270
                  tau       p_tau  Cystatin_C Adiponectin
AXL        0.59595269  0.61480583  0.69703676  0.08057868
Calbindin  0.53043489  0.51353191  0.47181482  0.01718580
Ferritin   0.46923376  0.47090359  0.53677266  0.10879947
MMP7       0.16510916  0.16390216  0.08184740  0.30420057
MMP10      0.44857101  0.39972750  0.24843017  0.26924069
IL_6      -0.09860427 -0.09659908 -0.01090426  0.05404693

13.2 FDR-corrected results

head(
  CorrObj$FDRCorrected$p
)

                   AXL    Calbindin     Ferritin         MMP7        MMP10
AXL                 NA 6.754432e-24 1.202720e-28 9.842573e-03 3.992599e-08
Calbindin 6.754432e-24           NA 3.833275e-18 7.113488e-01 3.479022e-03
Ferritin  1.202720e-28 3.833275e-18           NA 6.074841e-03 4.923868e-07
MMP7      9.842573e-03 7.113488e-01 6.074841e-03           NA 4.769713e-23
MMP10     3.992599e-08 3.479022e-03 4.923868e-07 4.769713e-23           NA
IL_6      2.697762e-02 7.985582e-02 7.625512e-01 5.203272e-03 1.280759e-01
                 IL_6       VCAM_1       ICAM_1 C_Reactive_Protein      TNF_RII
AXL       0.026977618 1.293370e-25 1.499682e-14       0.5273199829 9.778606e-45
Calbindin 0.079855821 1.243125e-13 6.182377e-05       0.9296432819 3.106130e-21
Ferritin  0.762551228 1.795021e-18 1.189938e-12       0.3552895169 7.443312e-34
MMP7      0.005203272 9.714927e-12 1.580795e-12       0.0002757268 2.841208e-11
MMP10     0.128075909 3.052323e-16 2.324964e-16       0.1113490246 1.202488e-21
IL_6               NA 7.113488e-01 3.379698e-01       0.0002625664 7.998138e-01
                 MCP_1          tau        p_tau   Cystatin_C  Adiponectin
AXL       0.6611392544 4.541696e-23 6.963711e-35 2.512685e-48 1.737381e-01
Calbindin 0.2566044219 9.150503e-18 4.541696e-23 3.072925e-19 7.768915e-01
Ferritin  0.0069532031 1.047663e-13 3.553999e-19 1.989033e-25 6.446548e-02
MMP7      0.0011050183 1.668540e-02 4.429348e-03 1.701290e-01 3.283011e-08
MMP10     0.0008262027 1.583878e-12 9.662275e-14 8.680291e-06 1.287152e-06
IL_6      0.0163849398 2.499962e-01 1.737381e-01 8.768573e-01 4.548805e-01

These results can be exported for reporting or used in downstream analyses.

14 Summary

PlotCorrelationsHeatmap() provides a comprehensive workflow for exploratory association analysis, including:

• Pearson, Spearman, and Kendall correlations
• Partial correlations using covariate adjustment
• Automatic FDR correction
• Label-aware visualization
• Interactive heatmaps
• Correlation coefficient annotation
• Follow-up visualization of significant associations

15 Related functions

• add_r_and_stars()
• plotSigCorrelations()
• MakeComparisonTable()
• PlotVolcanoEffects()
• CreatePCA()
