Interactive codebook harmonization dashboard

Launch a Shiny dashboard for reviewing and harmonizing multiple codebooks before deterministic merging with MergeCodebooks().

Usage

CodebookMergeApp(
  codebooks,
  VariableCol = "Variable",
  auto_type_mapping = TRUE,
  ignore_columns = NULL
)

Arguments

codebooks

Named list of codebook data frames.

VariableCol

Name of variable identifier column.

auto_type_mapping

Logical; normalize common type synonyms.

ignore_columns

Optional metadata columns to ignore.

Value

Launches a Shiny app.

Dashboard walkthrough

Because this function launches an interactive Shiny dashboard, the reference page uses static screenshots. Regenerate them with data-raw/CodebookMergeApp-screenshot.R, which drives the app with shinytest2 and writes to man/figures/.

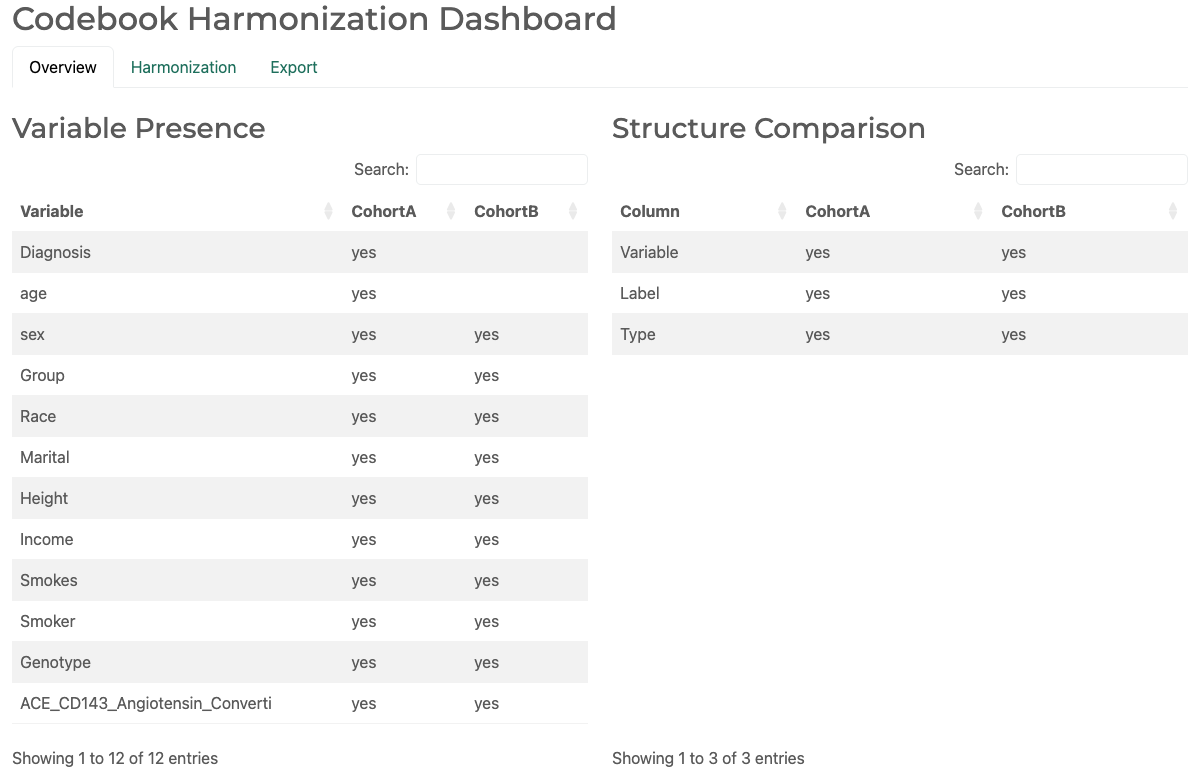

1. Overview

Start on the Overview tab. Variable Presence shows whether each variable is available in every source codebook; Structure Comparison shows the columns supplied by each source. Use these tables to distinguish expected cohort-specific variables from schema differences that need review.

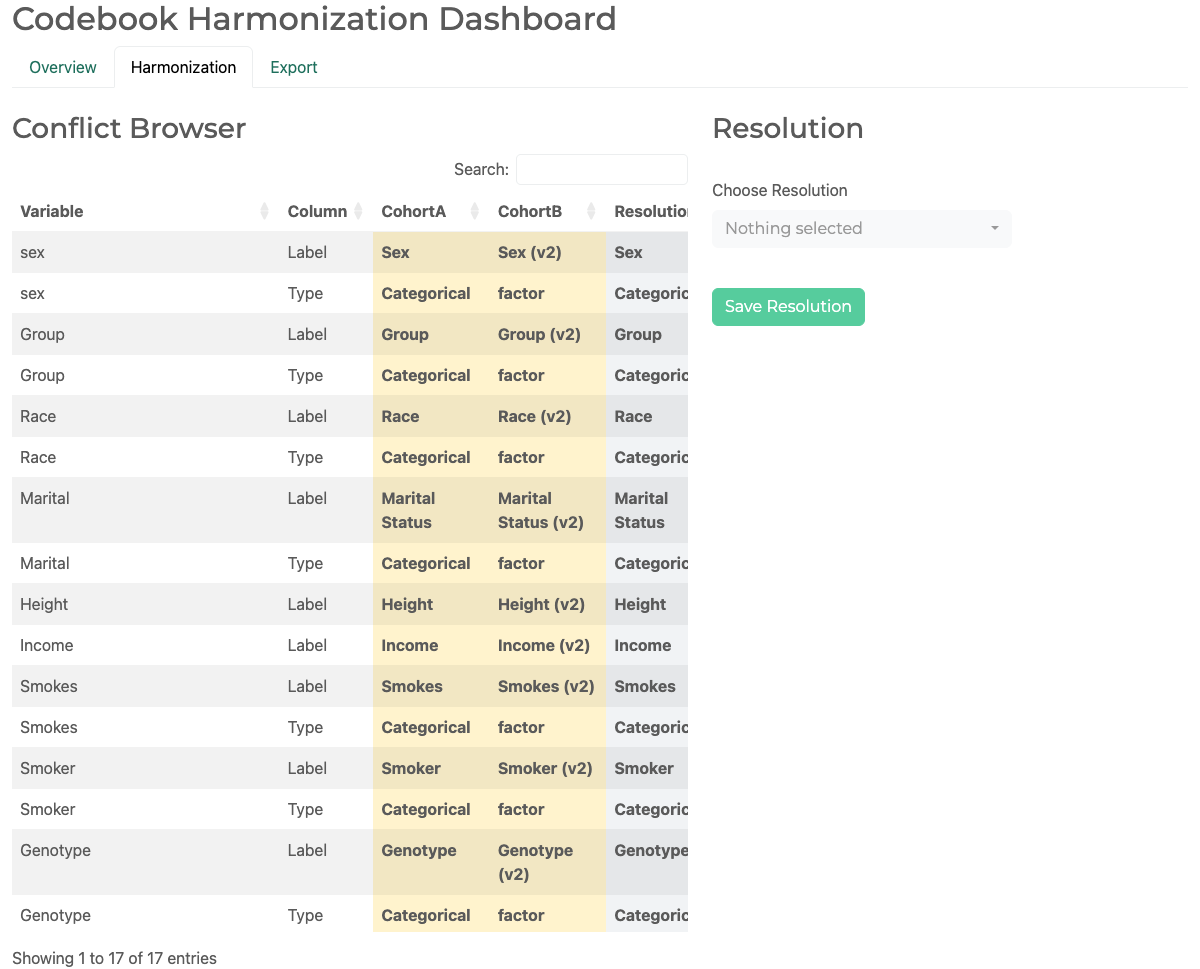

2. Harmonization

The Harmonization tab lists each conflicting variable-column pair and its source values. Select a conflict, choose one observed value or enter a custom value, then select Save Resolution. Saved choices appear below the resolution controls and are used when rules are generated; they do not alter the source codebooks.

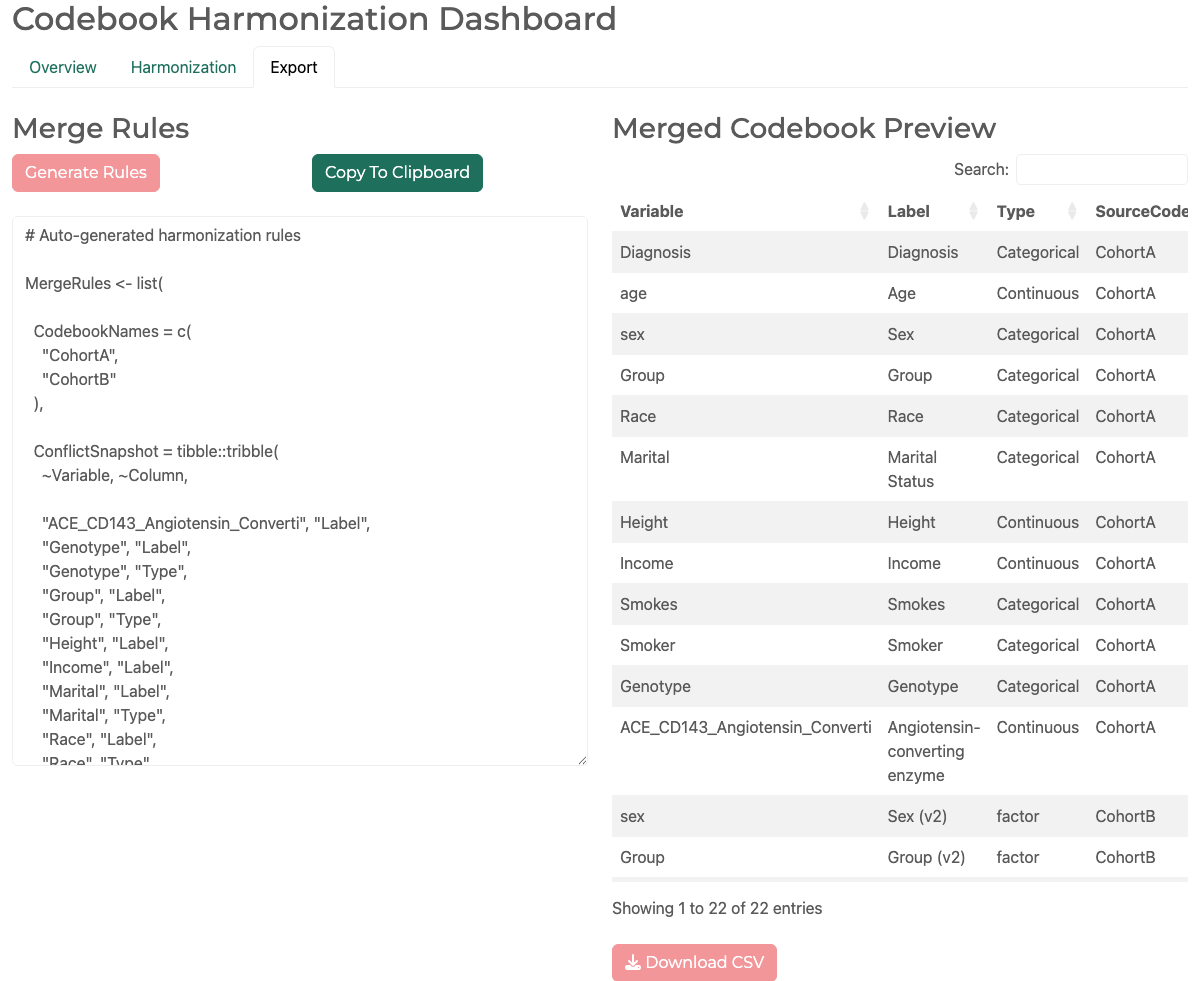

3. Export and merge

On Export, select Generate Rules to create reproducible MergeRules code and inspect the merged-codebook preview. Copy the rules or download the preview, then pass the generated object to MergeCodebooks() through its Rules argument to repeat the reviewed merge deterministically.

Examples

if (FALSE) { # \dontrun{
data(SampleVariableTypes)

# Two overlapping codebooks to harmonize before a deterministic merge
cb_a <- SampleVariableTypes[1:12, c("Variable", "Label", "Type")]
cb_b <- cb_a[-(1:2), ]
cb_b$Type[cb_b$Type == "Double"] <- "numeric"

# Launch the interactive harmonization dashboard
CodebookMergeApp(
  codebooks = list(CohortA = cb_a, CohortB = cb_b),
  VariableCol = "Variable"
)
} # }
