Best for high-dimensional correlated continuous measures with compact clusters in PCA score space.
Usage
CreateClusterModel_PCA_KMeans(
data,
variables = NULL,
method = c("exploratory", "finalize"),
k_range = 2:10,
final_k = NULL,
ZScoreType = NULL,
Scaling = NULL,
ClusterVariableName = "Cluster",
seed = 93421L,
nstart = 50L,
pca_variance_threshold = 0.85,
stability_resamples = 0L,
stability_seed = seed + 1L,
stability_progress = FALSE
)Arguments
- data
Data frame containing numeric clustering variables.
- variables
Variables used for clustering.
- method
Either
"exploratory"or"finalize".- k_range
Candidate cluster counts in exploratory mode.
- final_k
Number of clusters for a finalized PCA + K-means solution.
- ZScoreType
Frozen numeric preprocessing.
Scalingis a compatibility alias.- Scaling
Compatibility alias for
ZScoreType.- ClusterVariableName
Output cluster column name.
- seed
Random seed retained for reproducibility.
- nstart
Number of random K-means starts.
- pca_variance_threshold
Cumulative variance retained by the existing PCA workflow.
- stability_resamples
Number of 80% participant subsample refits used to estimate candidate reproducibility. Subsamples are drawn without replacement. Use
0to disable stability analysis.- stability_seed
Seed controlling participant subsampling.
- stability_progress
Whether to print subsample progress messages.
Value
A frozen PCA and K-means pipeline with full-pipeline subsample
stability. ModelInfo$plots leads with the reduction layer's scree and
loadings, followed by the K-means structure figures in score space
(including the per-participant silhouette profile) and profiles
restated in the original measurement scale. WSS/BSS, silhouette, and
Calinski-Harabasz use the same interpretation as K-means.
Stability output
Stability assesses internal reproducibility by full-pipeline 80% participant subsampling without replacement. For each replicate, 80% of complete participants are selected once, all preprocessing and any reduction (PCA, MCA, or SOM) are refit, the selected clustering method is refit, and the original complete training participants are projected into that subsample fit for comparison with the original fitted partition. It is an internal sensitivity analysis, not independent-cohort validation.
Stability$settings records the analysis provenance:
resamples: requested number of 80% subsample refits.seed: seed used to select subsamples.refit_scope: always"full_pipeline", meaning preprocessing, reduction where applicable, and clustering were all refit.resample_type:"subsample_without_replacement"for the primary stability analysis.resample_fraction: the retained participant fraction,0.80.coassignment_limit: maximum number of complete training participants (2,000) for which the full pairwise co-assignment matrix is calculated.noise_policy: whether the method has noise labels. For ordinary methods it is"all clusters included"; HDBSCAN variants retain noise in global partition metrics but exclude it from per-cluster inclusion and co-assignment summaries.
Stability$replicates has one row per requested refit. Model and
Classes identify the selected candidate (for HDBSCAN, Classes is the
data-derived extracted count); Replicate is its sequence number; Status
is "success" or a failure status; and Error contains the error message
for an unsuccessful refit. Successful rows contain these partition metrics:
ARI: adjusted Rand index, agreement corrected for chance; higher is better and can be negative when agreement is worse than chance.VI: variation of information, the information lost or gained when changing partitions; lower is better and zero is identical.NMI: normalized mutual information; higher is better and one is identical.FowlkesMallows: pairwise clustering agreement; higher is better and one is identical.
Stability$cluster_recovery has one row for each reference Cluster in
each successful Replicate. Jaccard is the recovery of that reference
cluster after matching it to the subsample cluster with the largest Jaccard
overlap; higher is better and one is exact recovery. Model and Classes
again identify the fitted candidate.
Stability$summary combines successful subsample refits:
StabilitySuccessRate is successful refits divided by requested refits, an
operational reliability measure that does not enter the reproducibility
score. StabilityARI_Mean and StabilityARI_P05 are the mean and fifth
percentile of ARI. StabilityJaccard_Mean and StabilityJaccard_Min are
respectively the mean and minimum label-matched Jaccard recovery.
ReproducibilityScore is the mean of the finite StabilityARI_Mean and
StabilityJaccard_Mean values only; it does not include success rate, VI,
NMI, or Fowlkes–Mallows.
Stability$failures repeats the replicate columns for unsuccessful refits,
making fit failures auditable without mixing them with successful metrics.
Stability$participant_inclusion is one row per complete reference
participant. RowIndex identifies its original row position, Cluster its
reference assignment, SuccessfulRefits the number of usable refits, and
InclusionProbability the proportion of those refits in which the
participant returned to that cluster's label-matched subsample cluster.
Model and Classes identify the candidate. Higher inclusion is better.
Stability$cluster_inclusion summarizes inclusion within each reference
Cluster: MeanInclusion, P05Inclusion, and MinInclusion are the mean,
fifth percentile, and minimum participant inclusion probabilities; Model
and Classes identify the candidate. Higher values indicate that all, not
only the average, of a cluster is recovered consistently.
Stability$coassignment is available only when the complete training cohort
has at most coassignment_limit participants. Each candidate entry has a
status of "available", "skipped", or "not_available"; reason
explains a non-available result; matrix is the pairwise probability that
two complete reference participants are assigned together across successful
subsample refits; and row_ids maps matrix rows and columns to original training-row
positions. Higher matrix values mean more consistent pairwise co-membership.
Where more than one candidate is summarized, entries are named by its
Model_Classes key. The matrix is diagnostic only and is never used for
selection.
Stability$plots contains cluster_recovery (per-cluster Jaccard),
partition_metrics (ARI, VI, NMI, and Fowlkes–Mallows distributions), and
cluster_inclusion; it also contains a co-assignment heatmap when the
matrix is available. These diagnostics complement rather than replace ARI
and Jaccard: none can turn a poorly reproducible cluster into a stable
phenotype.
Metric sources: Hubert and Arabie (1985) define ARI; Jaccard (1901) defines the overlap coefficient; Meila (2005) defines VI; Strehl and Ghosh (2002) describe NMI for partition comparison; Fowlkes and Mallows (1983) define their pairwise index; and Monti et al. (2003) describe resampling-based consensus co-assignment.
Examples
# \donttest{
data("SimulatedPhenotypeData")
df_Training <- dplyr::filter(SimulatedPhenotypeData, .data$Cohort == "Training")
vars_Numeric <- paste0("Var", 1:12)
review <- CreateClusterModel_PCA_KMeans(
df_Training, vars_Numeric, k_range = 2:5, nstart = 10,
stability_resamples = 2
)
review$ModelInfo$fit_table
#> # A tibble: 4 × 23
#> Classes WSS BetweenSS CalinskiHarabasz Silhouette MinClusterN SizeBalance
#> <int> <dbl> <dbl> <dbl> <dbl> <int> <dbl>
#> 1 2 977. 299. 97.5 0.282 80 0.333
#> 2 3 679. 597. 139. 0.405 80 0.5
#> 3 4 383. 893. 246. 0.543 80 1
#> 4 5 328. 948. 227. 0.513 24 0.3
#> # ℹ 16 more variables: Silhouette_scaled <dbl>, CalinskiHarabasz_scaled <dbl>,
#> # MinClusterN_scaled <dbl>, SizeBalance_scaled <dbl>, WSS_scaled <dbl>,
#> # ahp_index <dbl>, Recommended <lgl>, StabilitySuccessRate <dbl>,
#> # StabilityARI_Mean <dbl>, StabilityARI_P05 <dbl>,
#> # StabilityJaccard_Mean <dbl>, StabilityJaccard_Min <dbl>,
#> # NoiseSensitivity <dbl>, NoiseSpecificity <dbl>, ReproducibilityScore <dbl>,
#> # ReproducibilityScore_scaled <dbl>
review$ModelInfo$AHP$recommendation
#> [1] "AHP-style review recommends PCA plus K-means k (Classes = 4). Review this advisory choice alongside the candidate plots."

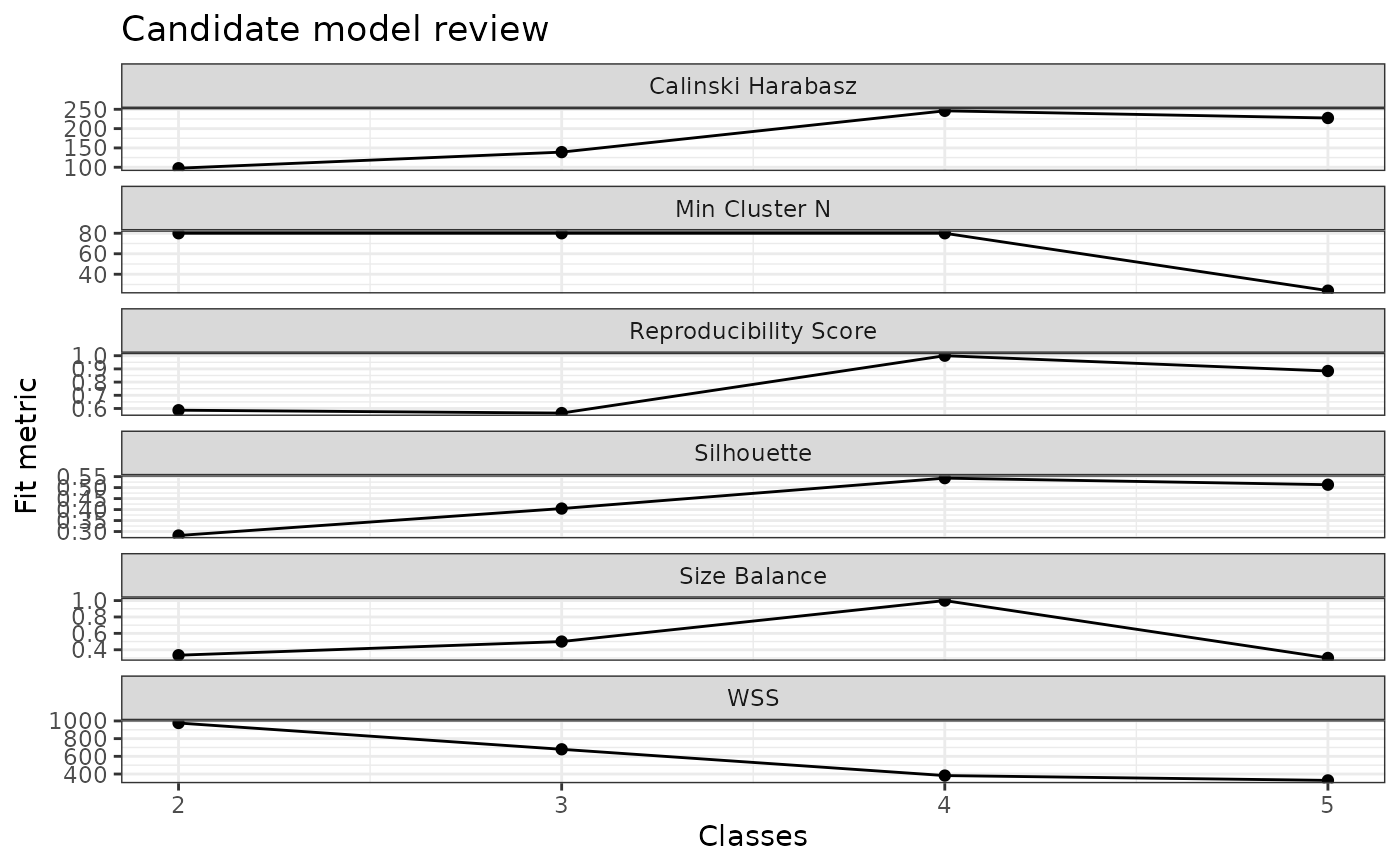

review$fit_plot
# The reduction layer comes first: how many components were retained, and
# what each one is actually made of.

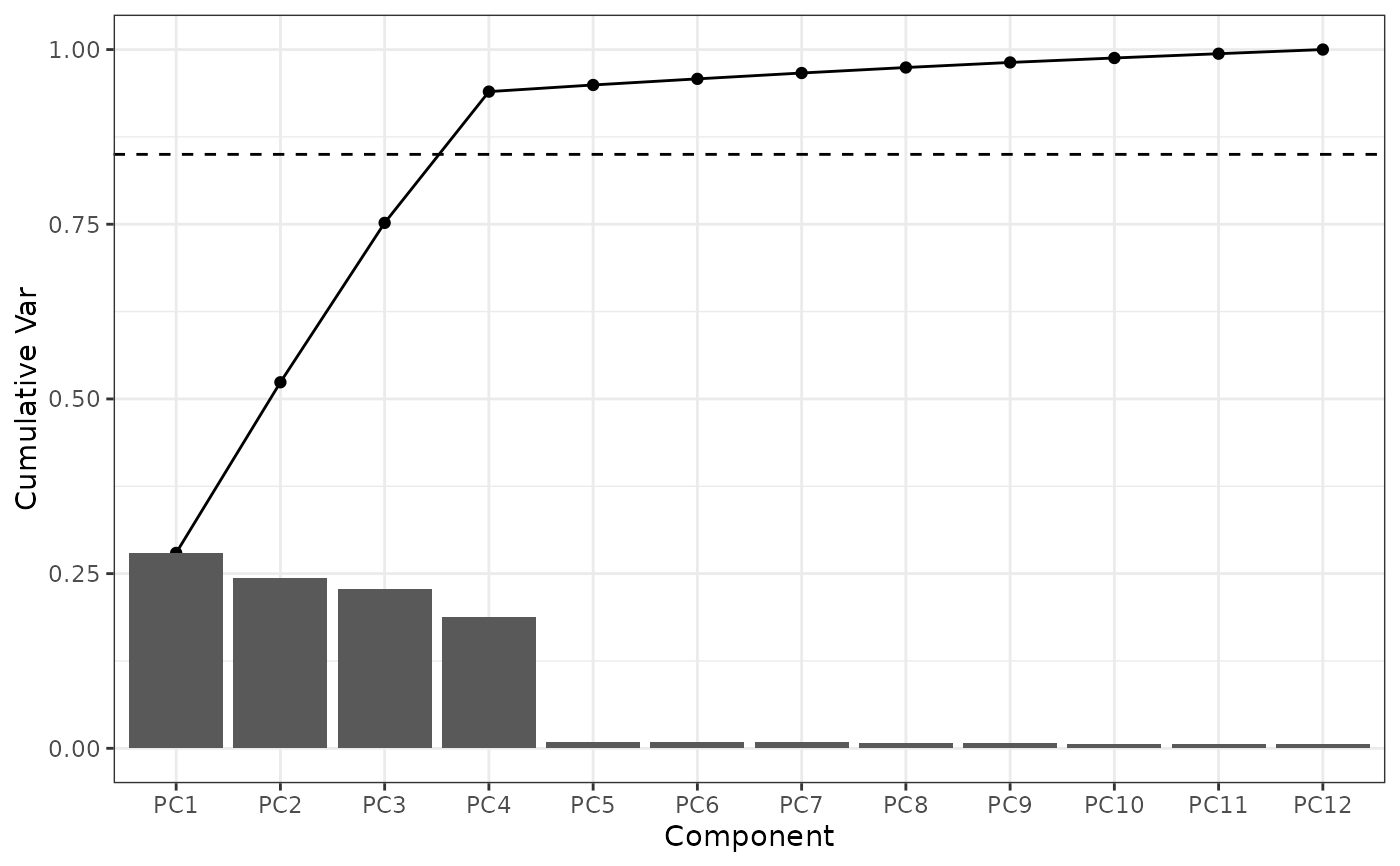

review$ModelInfo$plots$scree

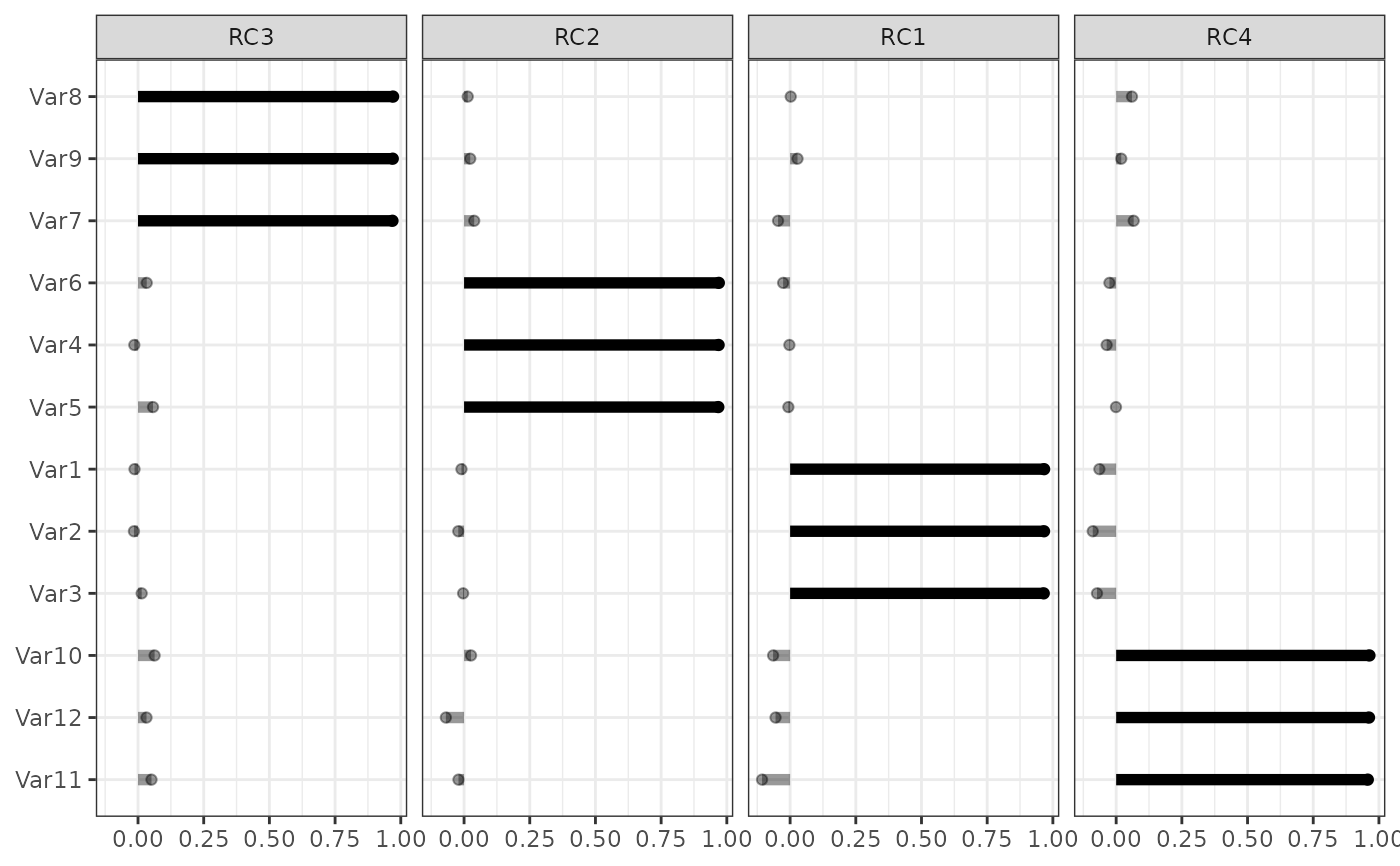

review$ModelInfo$plots$loadings
# Then the clustering in that score space.

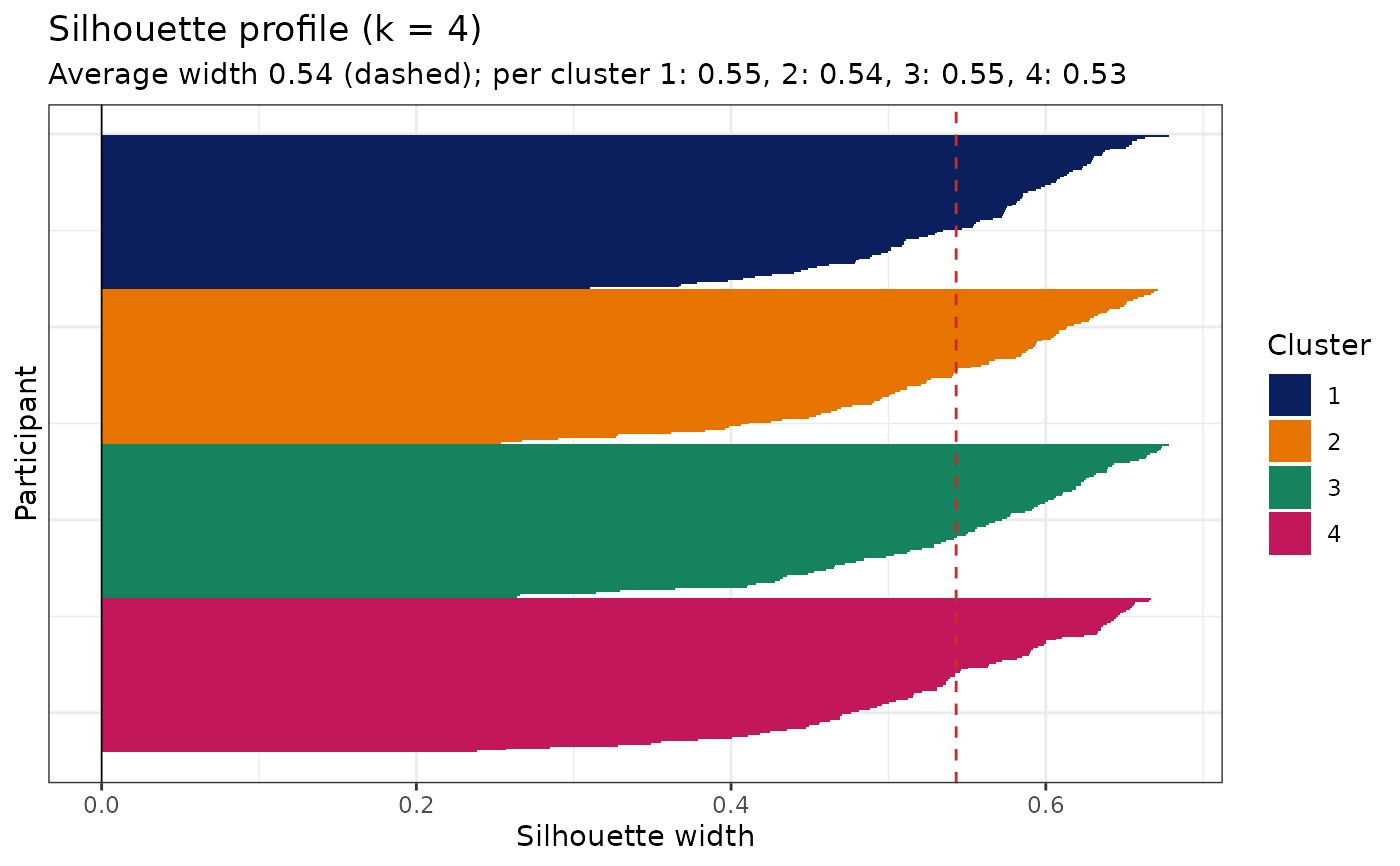

review$ModelInfo$plots$silhouette
# }
