Apply an evidence-aware p-value fill scale

Maps raw p-values to either the Inferno or Viridis color palette using a threshold-aware transformation. The transformation allocates additional visual resolution around commonly interpreted p-value thresholds of 0.05, 0.01, and 0.001. Values above 0.05 are progressively desaturated to reduce their visual emphasis while retaining a continuous representation of the underlying p-values. The colorbar uses the same warped coordinates, so its raw p-value labels remain separated around these thresholds. Use this scale when p-values are mapped to the fill aesthetic.

Usage

scale_fill_pvalue(
  palette = "inferno",
  direction = -1,
  name = "P-value",
  breaks = c(1, 0.1, 0.05, 0.01, 0.001, 1e-05, 1e-08),
  labels = .format_pvalue_labels,
  limits = c(1e-08, 1),
  na.value = "grey80",
  guide = NULL,
  ...
)

Arguments

palette

A character value specifying the color palette. Must be "inferno" or "viridis". Defaults to "inferno".

direction

A numeric value controlling the direction of the palette. Use -1, the default, for darker colors to indicate smaller p-values and stronger statistical evidence. Use 1 to reverse the palette.

name

The legend title. Defaults to "P-value".

breaks

A numeric vector of raw p-values to display as legend breaks. Defaults to commonly interpreted statistical thresholds and reference values.

labels

A function or character vector used to label the legend breaks. By default, the legend displays raw p-values rather than transformed values.

limits

A numeric vector containing the minimum and maximum p-values represented by the scale. Values outside these limits are squished to the nearest limit. Defaults to c(1e-8, 1).

na.value

The fill color assigned to missing p-values. Defaults to "grey80".

guide

A guide function or guide name. The default, NULL, uses a taller colorbar so the threshold-aware breaks remain legible. Supply "colourbar" for ggplot2's standard-sized colorbar or another guide to override this behavior.

...

Additional arguments passed to ggplot2::continuous_scale().

Value

A continuous ggplot2 fill scale.

Examples

# \donttest{
data(SampleData)
data(SampleVariableTypes)

Labelled <- RevalueData(SampleData, SampleVariableTypes)$RevaluedData

# A univariate screen: each biomarker against diagnosis, standardized so the
# effect sizes are comparable.
screen <- MakeUnivariateRegressionTable(
  data = Labelled,
  outcome_vars = "Diagnosis",
  predictor_vars = c(
    "age", "sex", "AXL", "Adiponectin", "Cortisol",
    "Ferritin", "Insulin", "Leptin", "tau", "p_tau"
  ),
  Standardize = TRUE
)

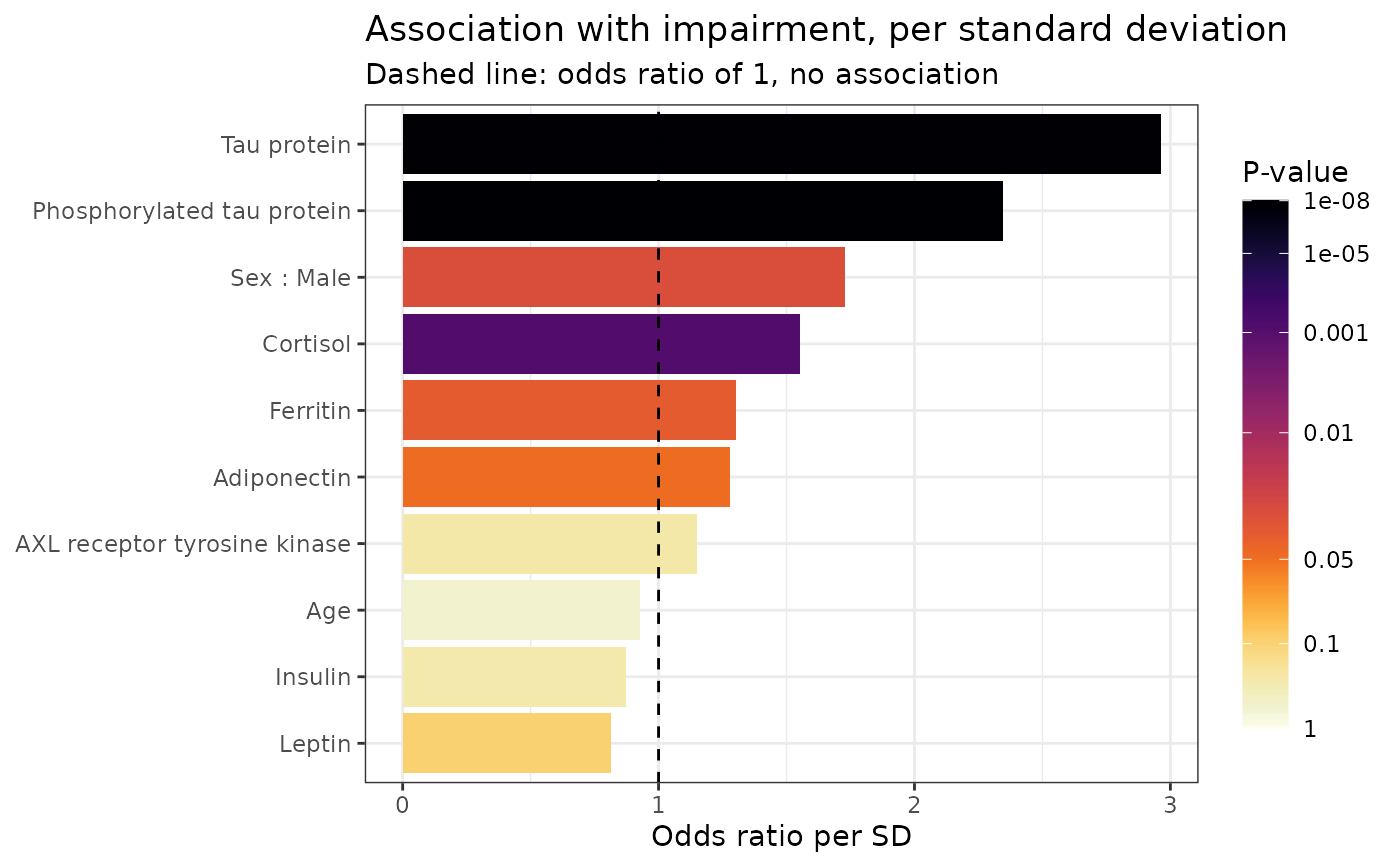

# Bar length is the effect, fill is the evidence for it. Reading the two
# together is the point: a long pale bar is a large estimate nobody should
# rely on, and a short dark bar is a small effect that is real.
ggplot2::ggplot(
  screen$Results,
  ggplot2::aes(
    x = Estimate,
    y = stats::reorder(TermLabel, Estimate),
    fill = PValue
  )
) +
  ggplot2::geom_col() +
  ggplot2::geom_vline(xintercept = 1, linetype = "dashed") +
  scale_fill_pvalue() +
  ggplot2::labs(
    title = "Association with impairment, per standard deviation",
    subtitle = "Dashed line: odds ratio of 1, no association",
    x = "Odds ratio per SD", y = NULL
  ) +
  ggplot2::theme_bw()

# }
